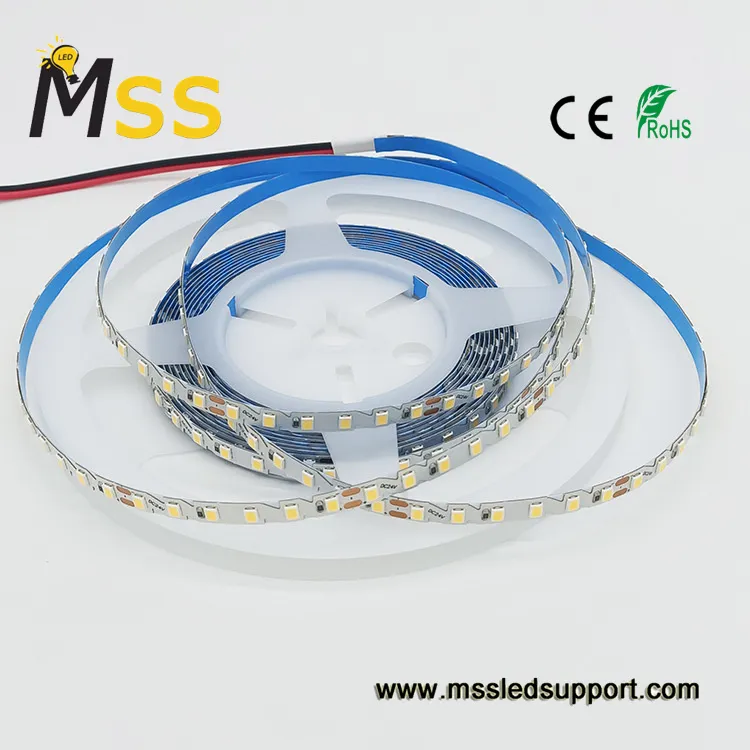

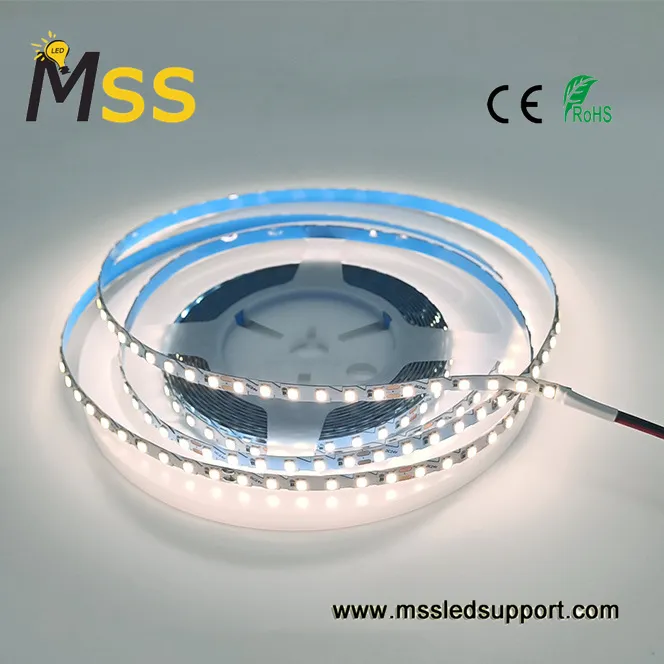

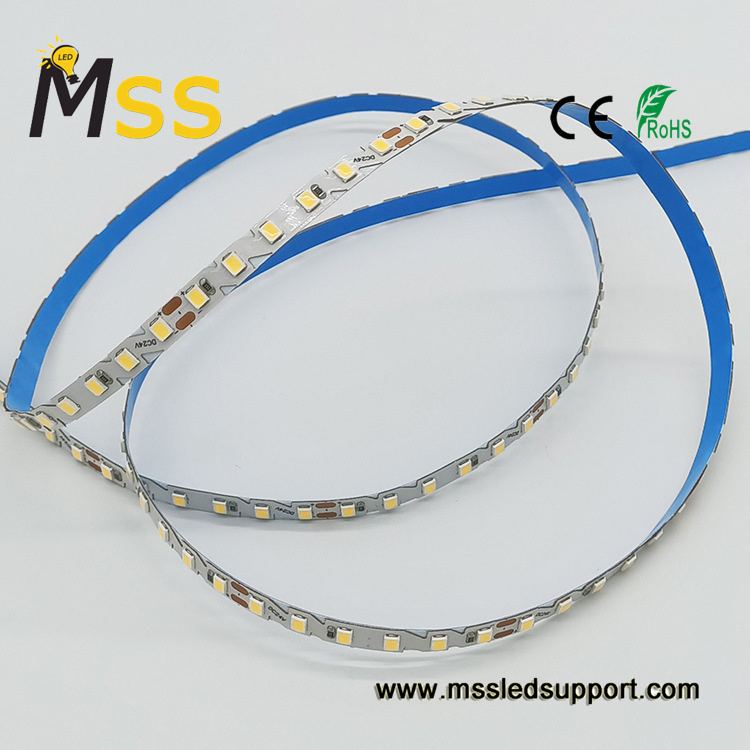

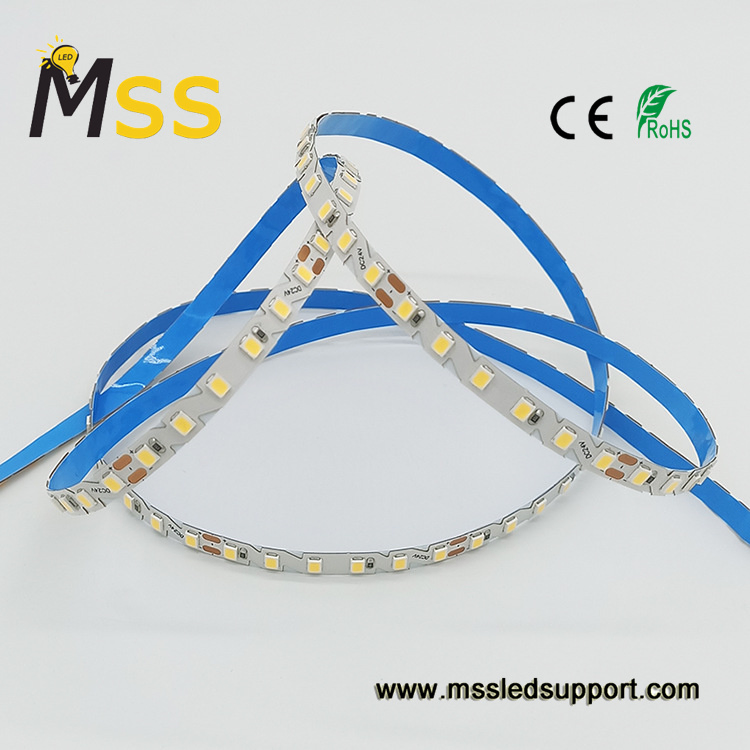

Super Bright Source 2835 Zigzag S-Shape LED Strip

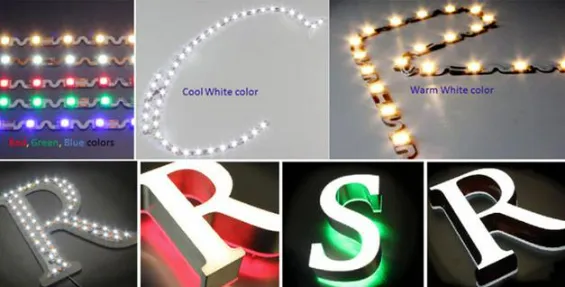

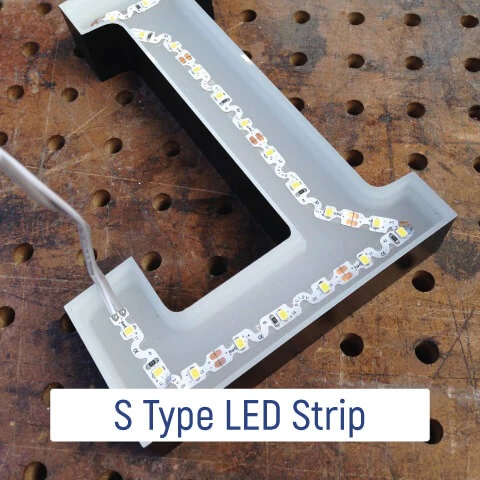

Bendable LED Strips provide even more possibilities for creative lighting! These strips can be installed on sharp corners or curved surfaces without the need for cutting and reconnecting. Designed for both professionals and lighting enthusiasts, these S-type strips are exceptionally easy to use and install. Ideal for signage, bars, stained glass, cabinets, and smooth indoor surfaces.
| Environmental & Operating Conditions | |
|---|---|
| Ambient temperature range (TA) | -25 to +50ºC |
| Operating temperature range (TC) | -25 to +50ºC |
| Storage temperature range | -25 to +60ºC |
| IP rating | IP33 |
| Electrical Parameters (Per Meter) | |
|---|---|
| Supply Voltage Range | 12.5±0.5 VDC |
| Supply Current | 700 mA |
| Power Consumption | 8.4 W |
| ESD Protection | Contact 4KV, Air 8KV |
| Part No. | Color Range (CCT/Wavelength) | Lumen (Typ.) |
|---|---|---|
| SF60C-2835 | 10000K - 22000K | 780LM |
| SF60W-2835 | 6000K - 8000K | 780LM |
| SF60M-2835 | 3000K - 34000K | 780LM |
| SF60R-2835 | 620nm - 630nm | 252LM |
| SF60G-2835 | 520nm - 530nm | 564LM |
| SF60B-2835 | 460nm - 470nm | 168LM |
| SF60Y-2835 | 588nm - 594nm | 222LM |
