Medical Rotary Sealeri So 11607 En868-5 for Medical Pouches and Reels Tyvek Pouches with Printing
Medical Rotary Sealeri So 11607 En868-5 for Medical Pouches and Reels Tyvek Pouches with Printing
Medical Rotary Sealeri So 11607 En868-5 for Medical Pouches and Reels Tyvek Pouches with Printing
Medical Rotary Sealeri So 11607 En868-5 for Medical Pouches and Reels Tyvek Pouches with Printing
Medical Rotary Sealeri So 11607 En868-5 for Medical Pouches and Reels Tyvek Pouches with Printing
1 / 5
Medical Rotary Sealeri So 11607 En868-5 for Medical Pouches and Reels Tyvek Pouches with Printing
Medical Rotary Sealeri So 11607 En868-5 for Medical Pouches and Reels Tyvek Pouches with Printing
Medical Rotary Sealeri So 11607 En868-5 for Medical Pouches and Reels Tyvek Pouches with Printing
Medical Rotary Sealeri So 11607 En868-5 for Medical Pouches and Reels Tyvek Pouches with Printing
Medical Rotary Sealeri So 11607 En868-5 for Medical Pouches and Reels Tyvek Pouches with Printing

Medical Rotary Sealeri So 11607 En868-5 for Medical Pouches and Reels Tyvek Pouches with Printing

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

🔹 Basic Information
Automatic Grade
Automatic
Application
Paper & Plastic
Type
Sealing Machine
Material Type
Instrument
Power
400W
Temperature
~220°C
Sealing Speed
10m/Min
Printer
DOT Matrix Printer
Screen
7-Inch Color Screen
Shell
Coated Carbon Steel
Specification
495*145*110mm
HS Code
8422309090

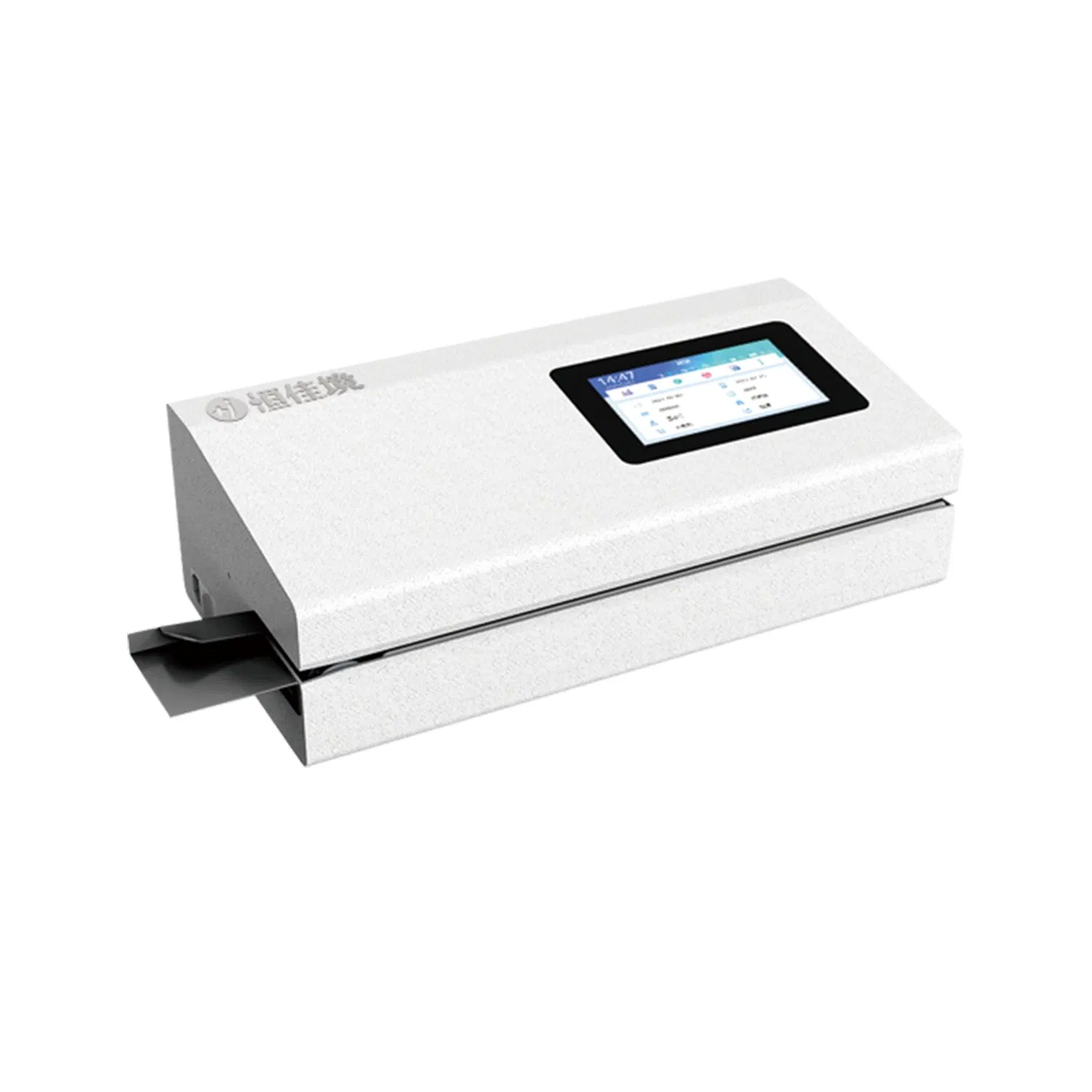

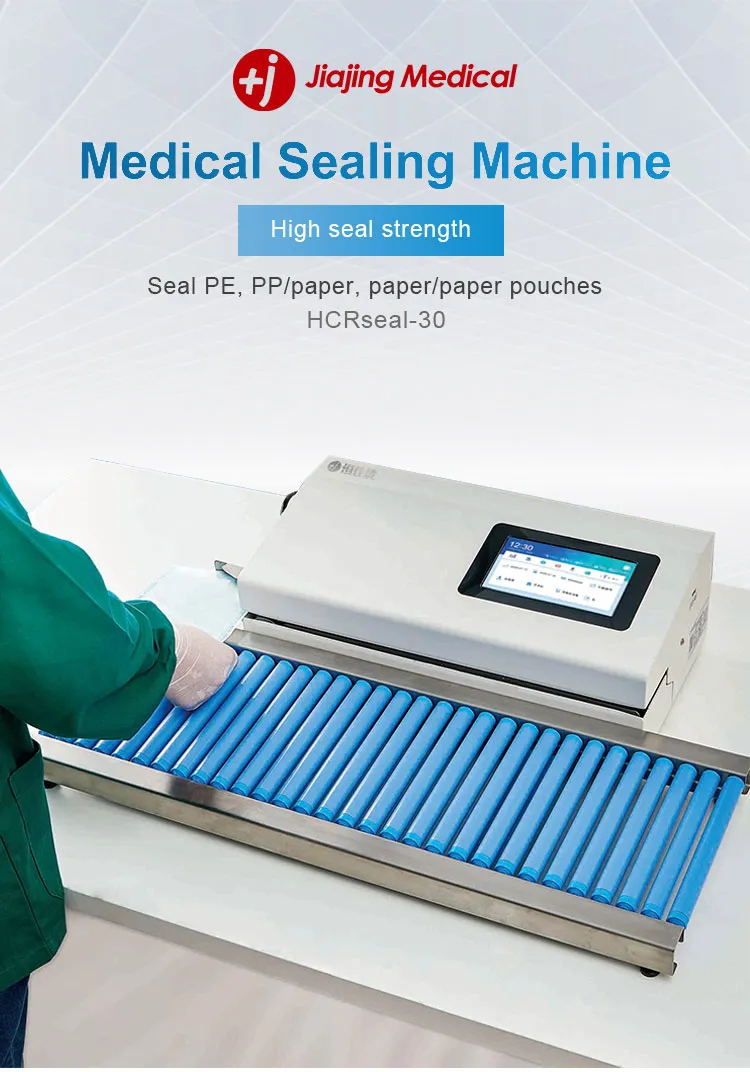

Medical Rotary Sealer
🚀 Key Features
✔
Built-in dot matrix printer for manufacturing date, expiry date, and operator info.
✔
Microprocessor-based temperature control for precise operation.
✔
Optimized for Tyvek pouches sealing.
✔

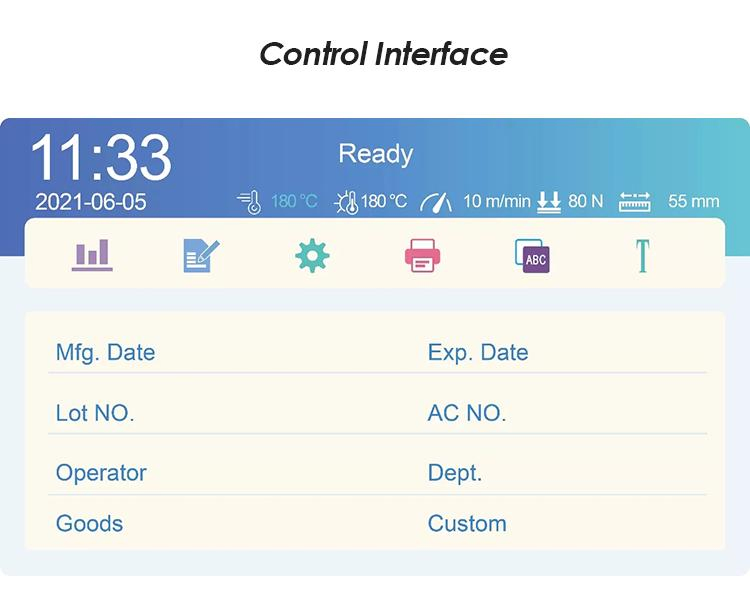

7" Color touch screen for intuitive temperature monitoring.
✔
Strict temperature tolerance of ±1%.
✔
Automatic in-feed equipped with an optical sensor.
✔
High sealing speed of 10m/min with adjustable distance from the edge.
✔
Energy-saving automatic standby mode to prolong machine element life.
✔
Fully conforms to ISO 11607 and EN 868-5 standards.
✔
Compact and lightweight design (11kg) for space-saving efficiency.
📋 Technical Specifications
Parameter Value / Detail
ModelHCRseal-30
Manipulation PatternAutomatic & continuous
Dimension450×230×175 mm
Weight11kg
Rated Power400W
Housing MaterialCoated carbon steel
Temperature RangeMax. 220°C
Heating Rate180°C/40s
Seal Width12 mm
Sealing Speed≥ 10m/min
Distance from Edge0~40 mm
Screen Size7" color touch screen
Printing SystemDot-matrix printing (single line)
Pressure MonitoringSupported (√)
📍 Advanced Printing: You can print manufacturing date, expiry date, lot number, and operator information directly on the pouch to facilitate sterilization tracking.
Printing Detail

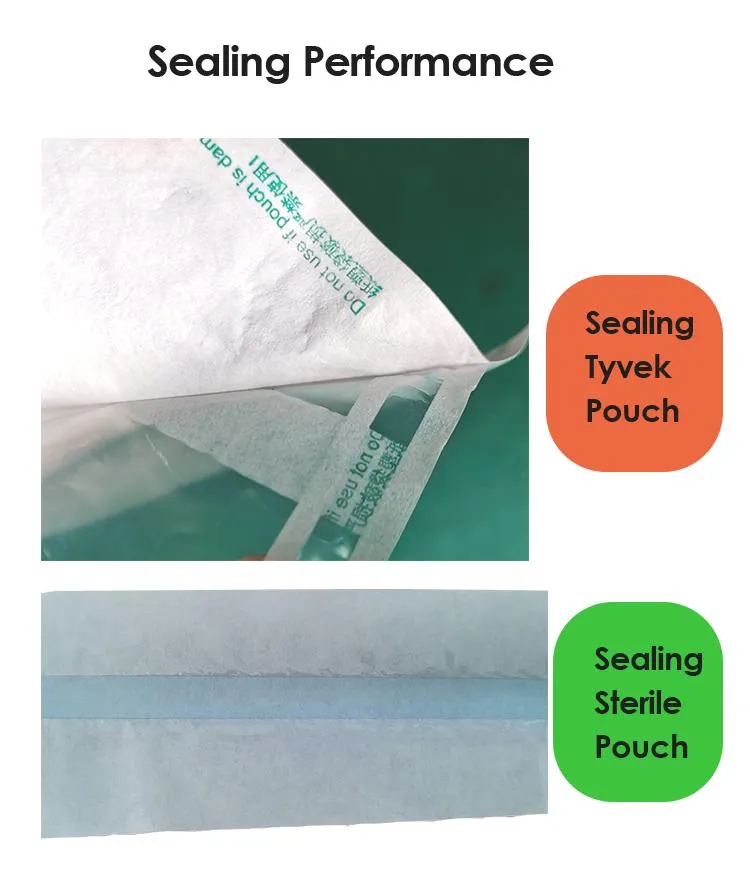

Medical Sealer View 1
Medical Sealer View 2
Medical Sealer View 3

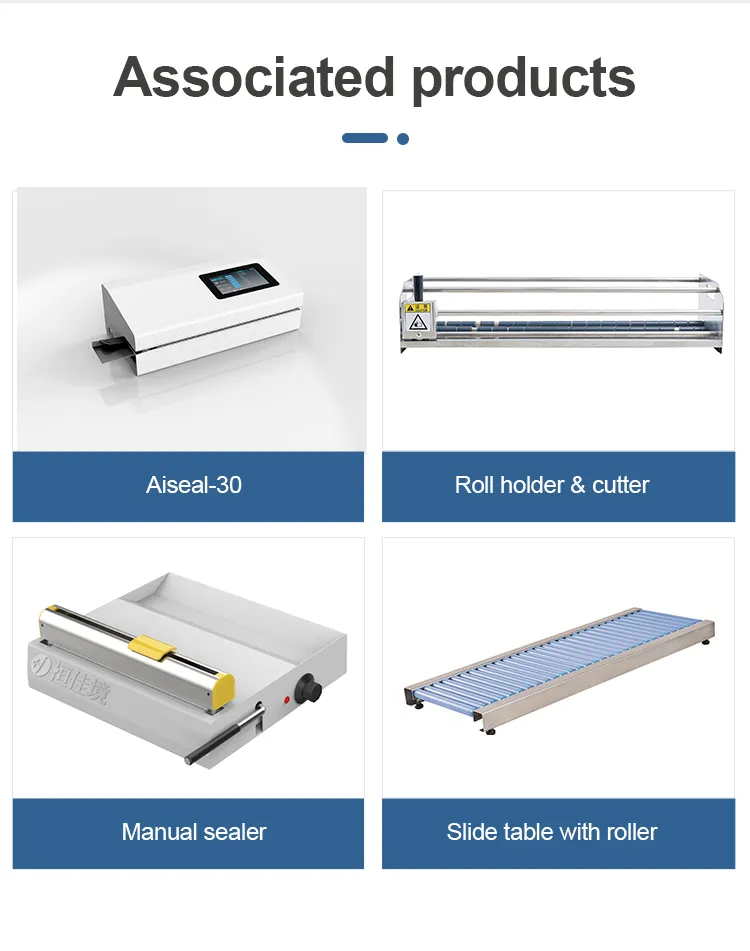

Medical Sealer View 4
❓ Frequently Asked Questions
What materials can be sealed with this machine?
The HCRseal-30 is designed for paper-plastic pouches and is specifically optimized for sealing Tyvek pouches.
Does the sealer include a printing function?
Yes, it features a built-in dot-matrix printer that allows you to print essential data like batch numbers, expiry dates, and operator IDs directly on the packaging.
How fast is the sealing process?
The machine offers an automatic and continuous sealing speed of 10 meters per minute or more.
Is the temperature control accurate?
Absolutely. It uses a microprocessor for temperature control with a tight tolerance of ±1%, reaching up to 220°C.
What safety or efficiency standards does it meet?
The equipment fully conforms to international medical packaging standards ISO 11607 and EN 868-5.
Is the interface easy to use?
Yes, it is equipped with a 7-inch color touch screen that displays all parameters and operation modes intuitively.
