Product Description

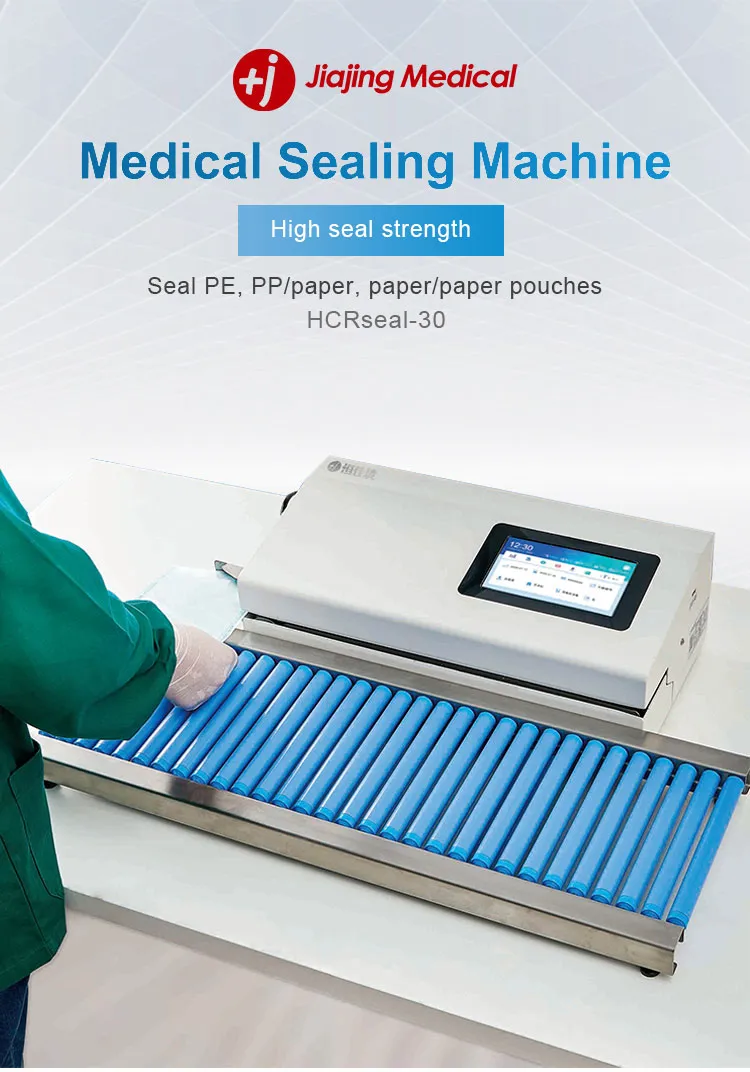

Medical Rotary Sealer

Basic Information

Model NO.HCRseal-30
Automatic GradeAutomatic
ApplicationPaper & Plastic
TypeSealing Machine
Power400W
Temperature~220°C
Sealing Speed10m/Min
PrinterDOT Matrix Printer
Screen7-Inch Color Screen
ShellCoated Carbon Steel
Specification495*145*110mm
HS Code8422309090

Key Features

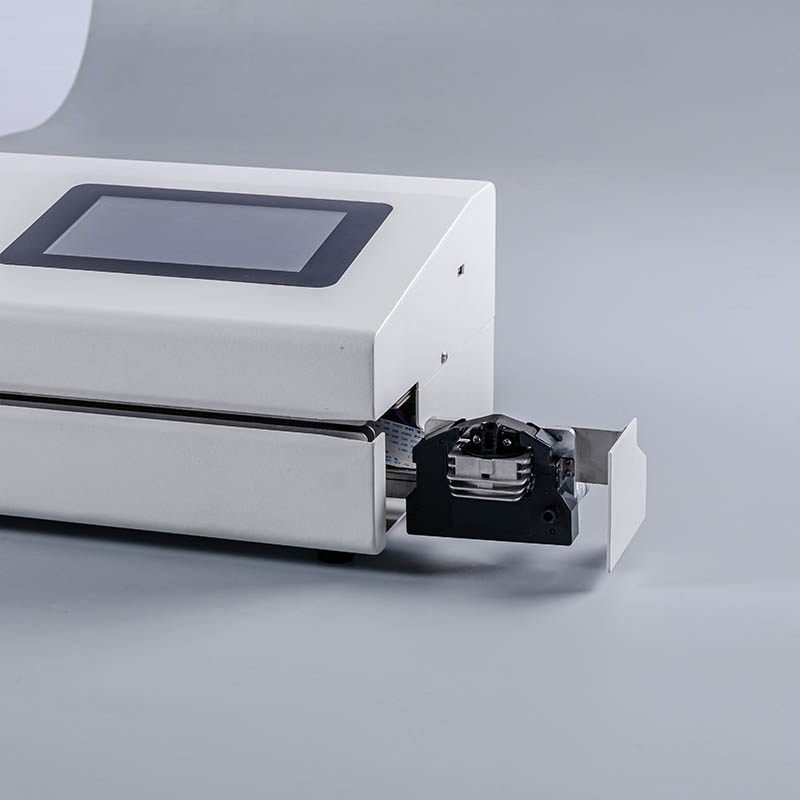

1Built-in dot matrix printer for manufacturing date, expiry date, and operator info.
2Microprocessor-controlled temperature for precision sealing.
3Specially designed for Tyvek pouches sealing requirements.
47" color touch screen displays temperature and status intuitively.
5Strict temperature tolerance control within ±1%.
6Automatic in-feed system integrated with optic sensor.
7Adjustable temperature range up to 220°C.
8High-efficiency 10m/min continuous sealing speed.
9Automatic standby mode to prolong machine element lifespan.
10Full conformity to ISO 11607 and EN 868-5 standards.

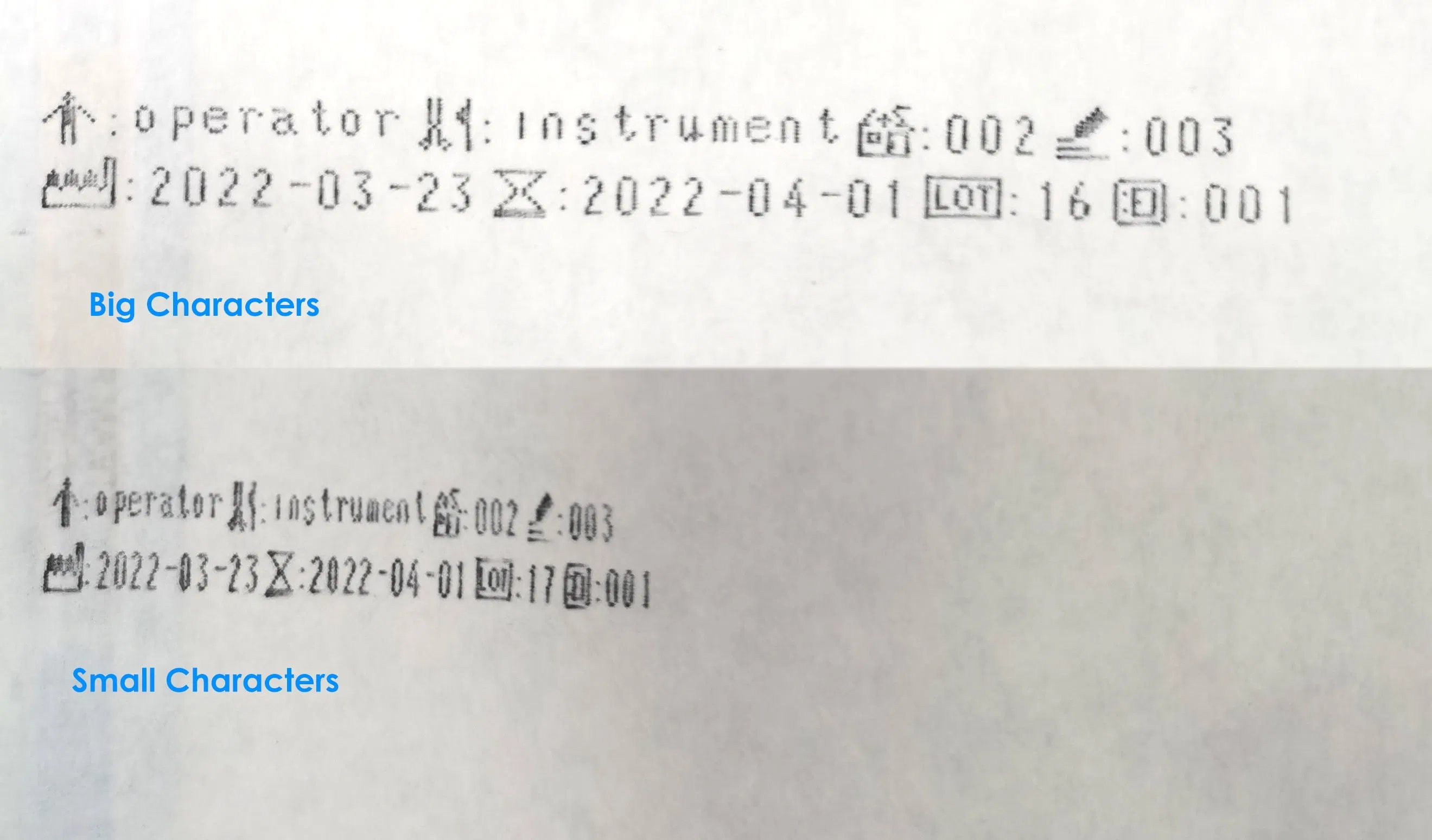

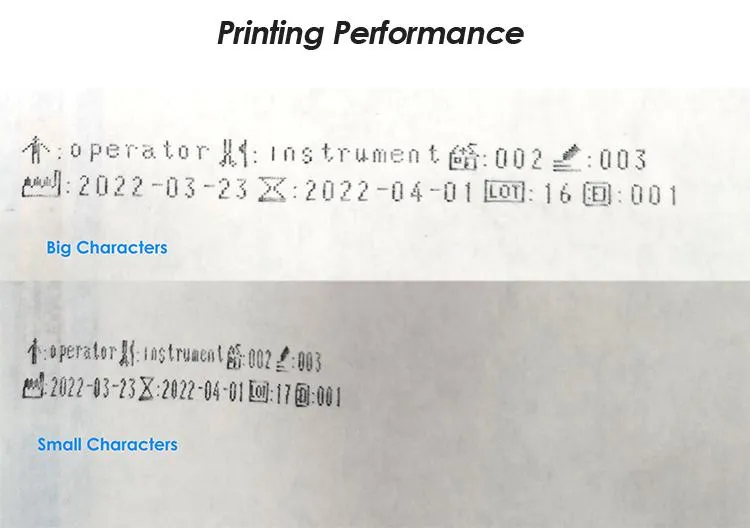

Printing Sample

Professional printing capability for manufacturing date, expiry date, lot number, and operator identification directly on the pouch.

Detailed Specifications

Parameter Specification Details
ModelHCRseal-30
Manipulation PatternAutomatic & continuous
Dimension450×230×175 mm
Weight11kg
Rated Power400W
Heating Rate180°C / 40s
Seal Width12 mm
Distance from Edge0~40 mm
Operation SystemBuilt-in OS with 7" Touch Screen
Pressure MonitoringSupported (√)

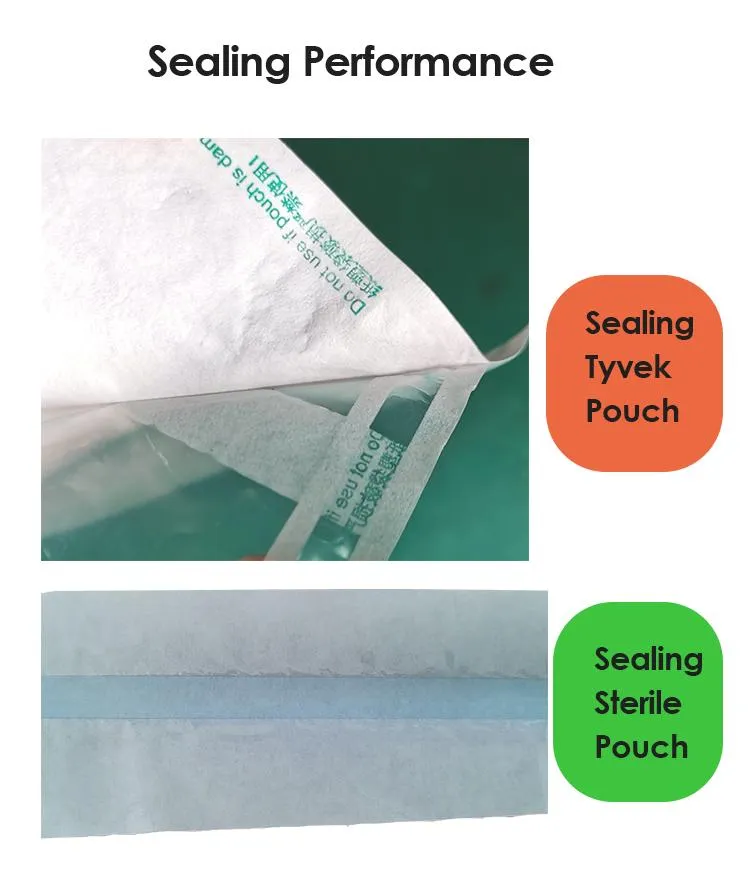

Medical Sealer Detail 1 Medical Sealer Detail 2 Medical Sealer Detail 3

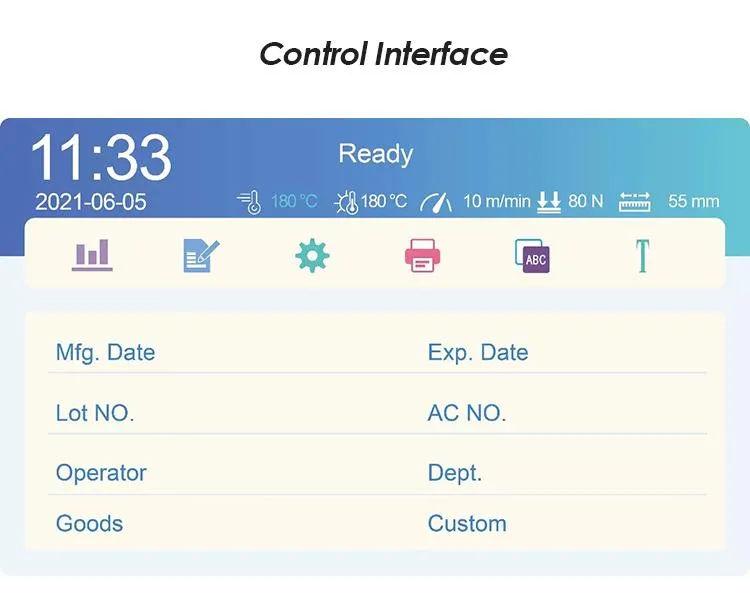

Operation Interface

Frequently Asked Questions

Can the HCRseal-30 seal Tyvek pouches?
Yes, this machine is specifically designed to handle Tyvek pouches as well as standard paper and plastic medical packaging.
What information can the built-in printer handle?
The integrated dot matrix printer can print essential sterilization data including manufacturing date, expiry date, lot numbers, and operator names.
How fast does the machine heat up?
The machine features a rapid heating system that can reach 180°C in approximately 40 seconds.
Is the sealing speed adjustable?
The machine operates at a high-efficiency continuous speed of 10 meters per minute, ensuring rapid processing of medical pouches.
What are the safety and quality standards of this sealer?
The HCRseal-30 conforms to international medical packaging standards ISO 11607 and EN 868-5.
Does the machine have energy-saving features?
Yes, it includes an automatic standby mode that activates when the machine is idle, which helps prolong the life of the heating elements and reduces power consumption.
