| Model NO. | YDQ01 |
| Certification | CE |
| Group | Medical Equipment |
| Environmental Temperature | 5c-35c |
| Cultivation Temperature | 36-60 |
| Cultivation Specified Time | 30~240 Min |
| Net Weight | 1.1kg |
| Specification | 228*228*118mm |
| Origin | China |

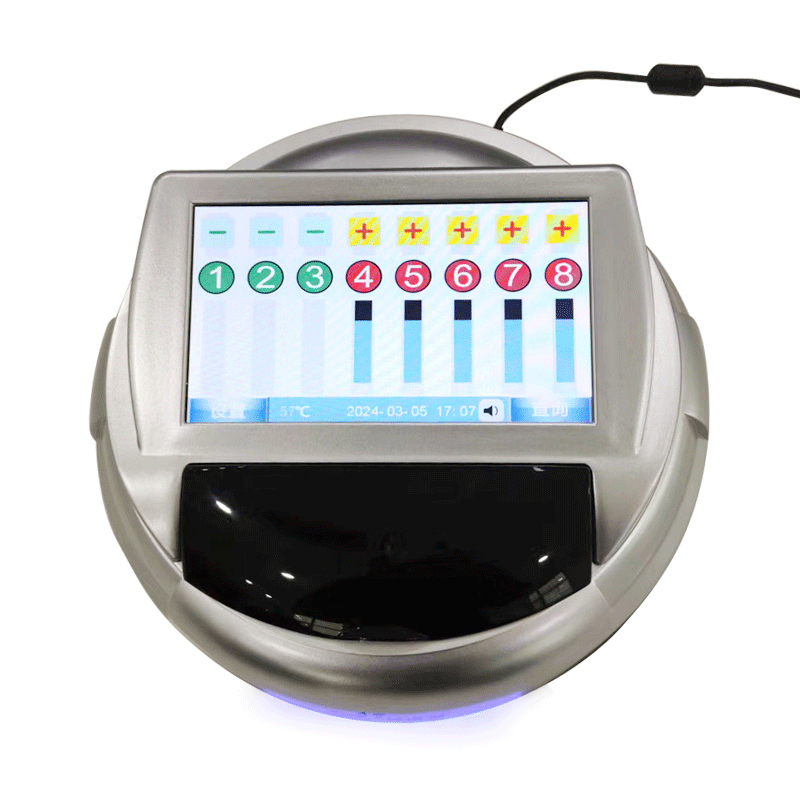

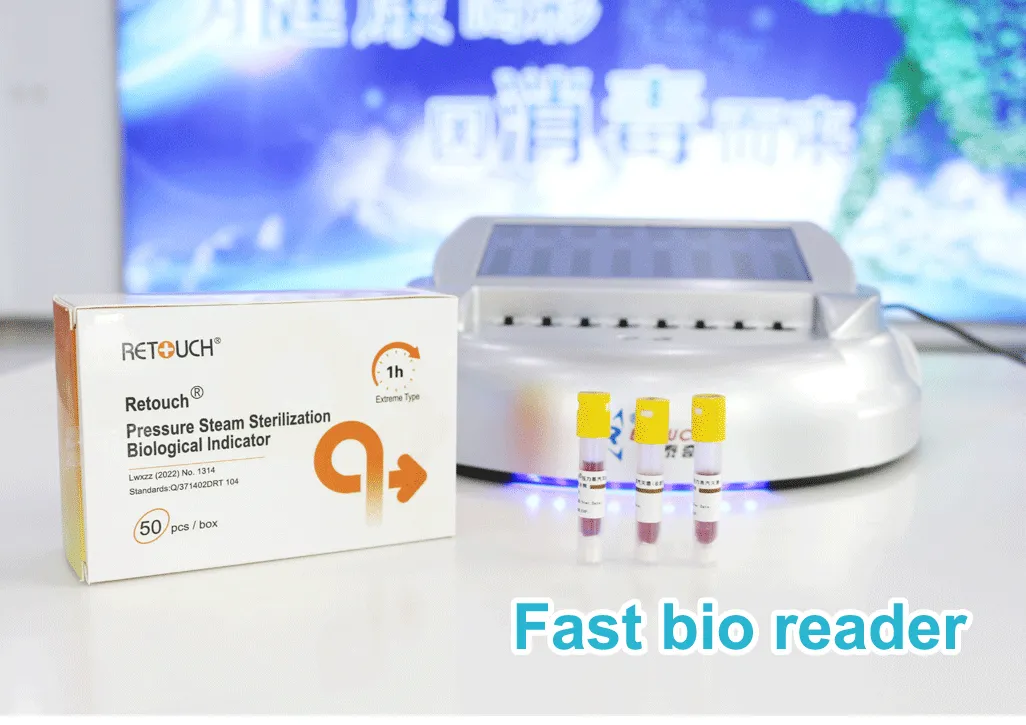

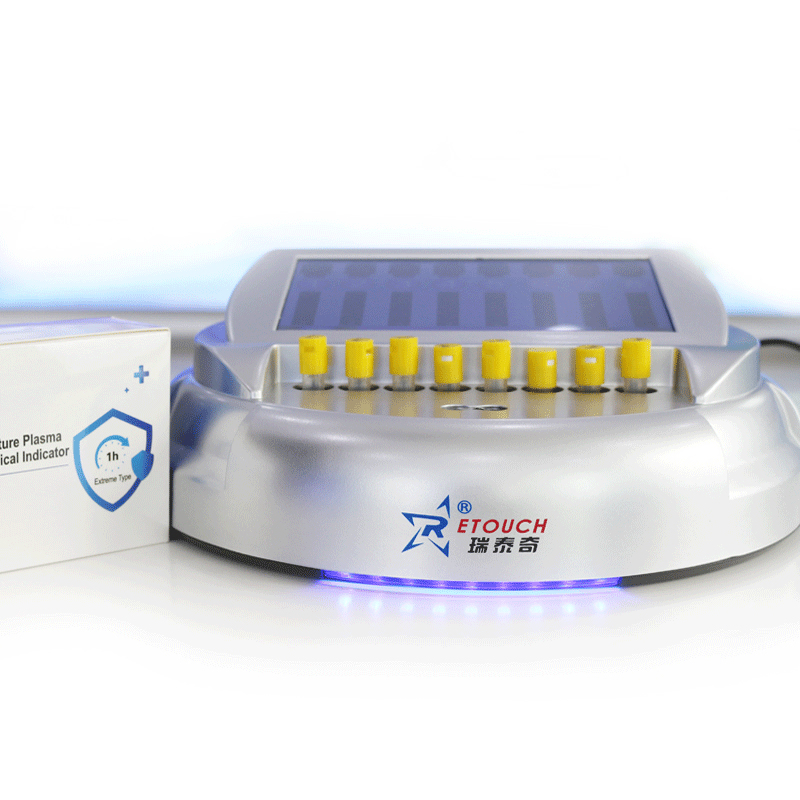

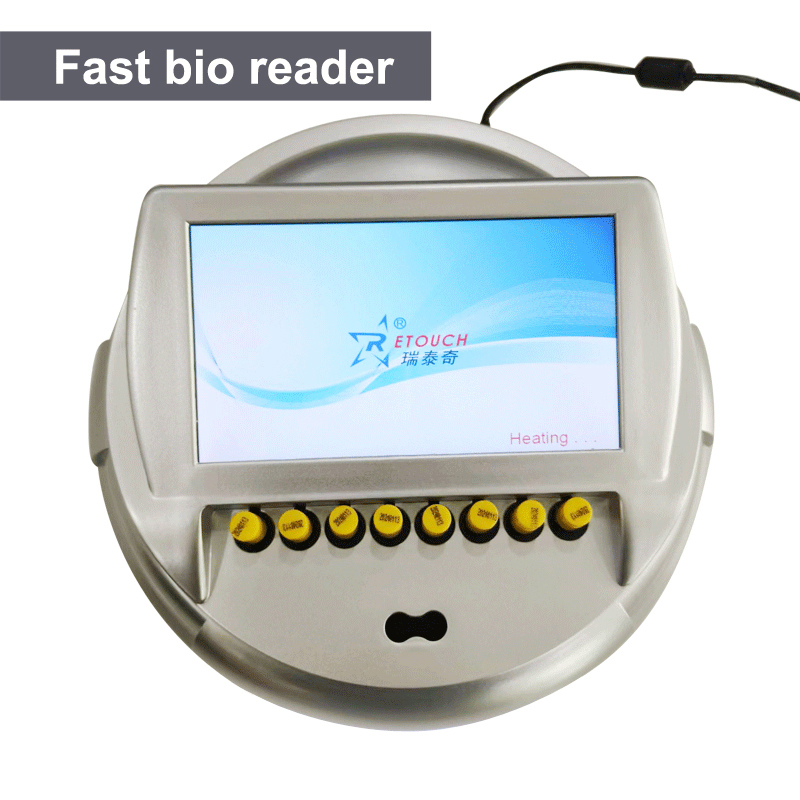

A Fast Bio Reader that uses spectral analysis to quickly determine if the spores are surviving based on the fluorescence reaction of special enzyme spores in the fast biological indicator.
| Technical Specifications | ||
|---|---|---|
| Electrical Parameters | Power(W) | <36 |
| Input Voltage | DC 12V 3A | |
| Environmental Temperature | 5ºC-35ºC | |
| Environmental Humidity | ≤95% (no condensation) | |
| Basic Function | Cultivation Temperature | 36-60ºC (Adjustable) |
| Quantity Cultivation Wells | 8 Wells | |
| Display Screen | 7'' TFT Touch Screen | |

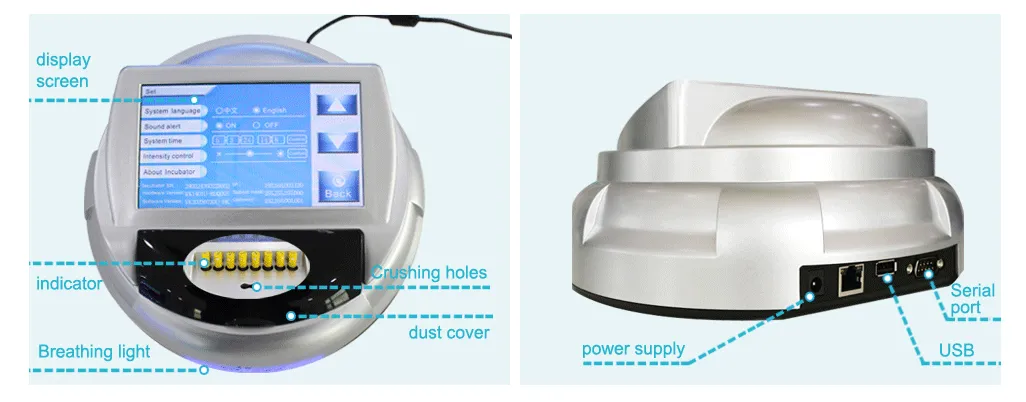

| Auxiliary Functions | Network Port | RJ-45 (10/100 Ethernet) |
| Serial Port | Two DB9 | |
This Fast Bio Reader is suitable for rapid monitoring of sterilization equipment processing results in medical, experimental, healthcare and other institutions. Being able to accurately determine biological monitoring results within 30-240 minutes and complete traceability management of monitoring results, significantly improves the efficiency and reliability of biological monitoring, making up for the shortcomings of traditional biological monitoring.
Automatically enters the cultivation state after identifying indicators. System automatically continues cultivation if the indicator is re-inserted within the specified time after removal.
Features real-time self-test and fault protection. Provides sound and light prompts for faults and results, removing the need to constantly check the screen.
View history via monitoring software or IE browser. Export and print reports easily, associating results with sterilization records for seamless quality tracking.

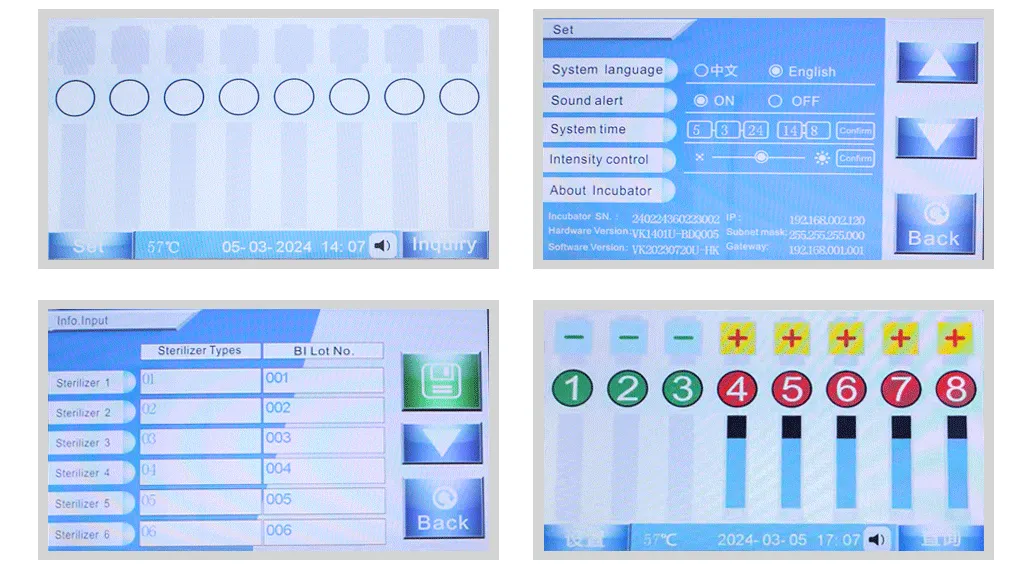

Independently displays status, countdown, and channel results. Open communication protocol allows online monitoring with sterilizers and traceability systems.
Equipped with a touch screen and integrated operating system. Performs sensor verification and routine maintenance without needing a PC connection.
Simple cultivation operation with convenient dust prevention. The UI interface is user-friendly, and atmospheric light prompts indicate working status at a glance.

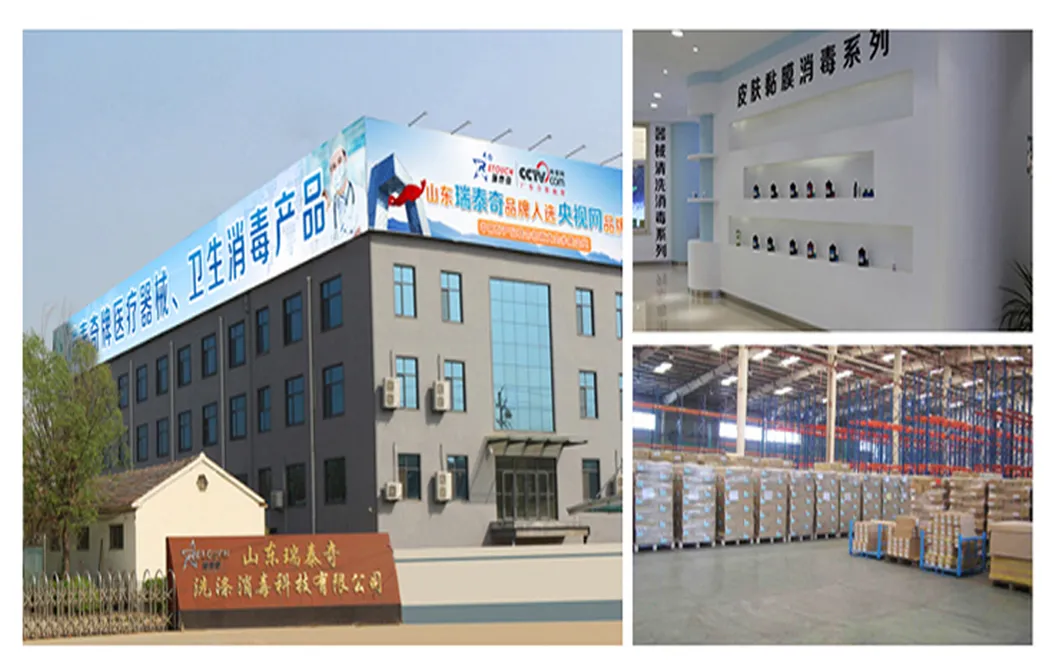

Founded in July 2001, we are a high-tech enterprise specialized in the research, development, manufacturing, and marketing of hygiene disinfection products. We are a recognized leader in the domestic disinfection industry, dedicated to leading a sterile new world through technological innovation.

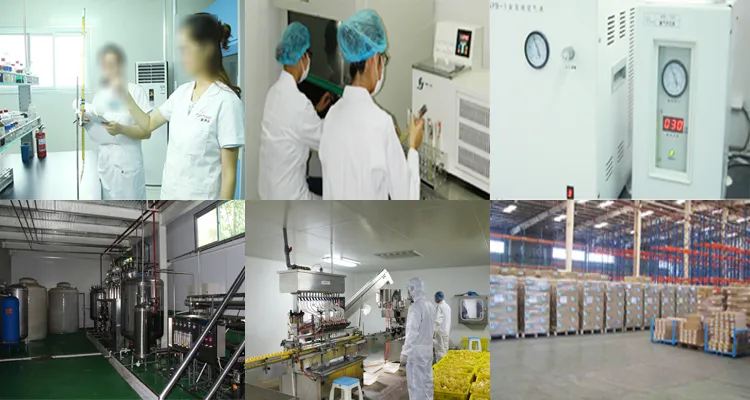

Our facility has passed ISO9001:2008 quality management system certification. Products are exported to the EU, Asian Pacific countries, and Africa. We maintain an independent laboratory testing center equipped with advanced testing devices to ensure the highest quality standards.
