LCD Display
With LCD Display
High Temp Alarm
Ultra High Temperature Alarm
Recording/Printing
Supported
Production Capacity
100 PCS/Month

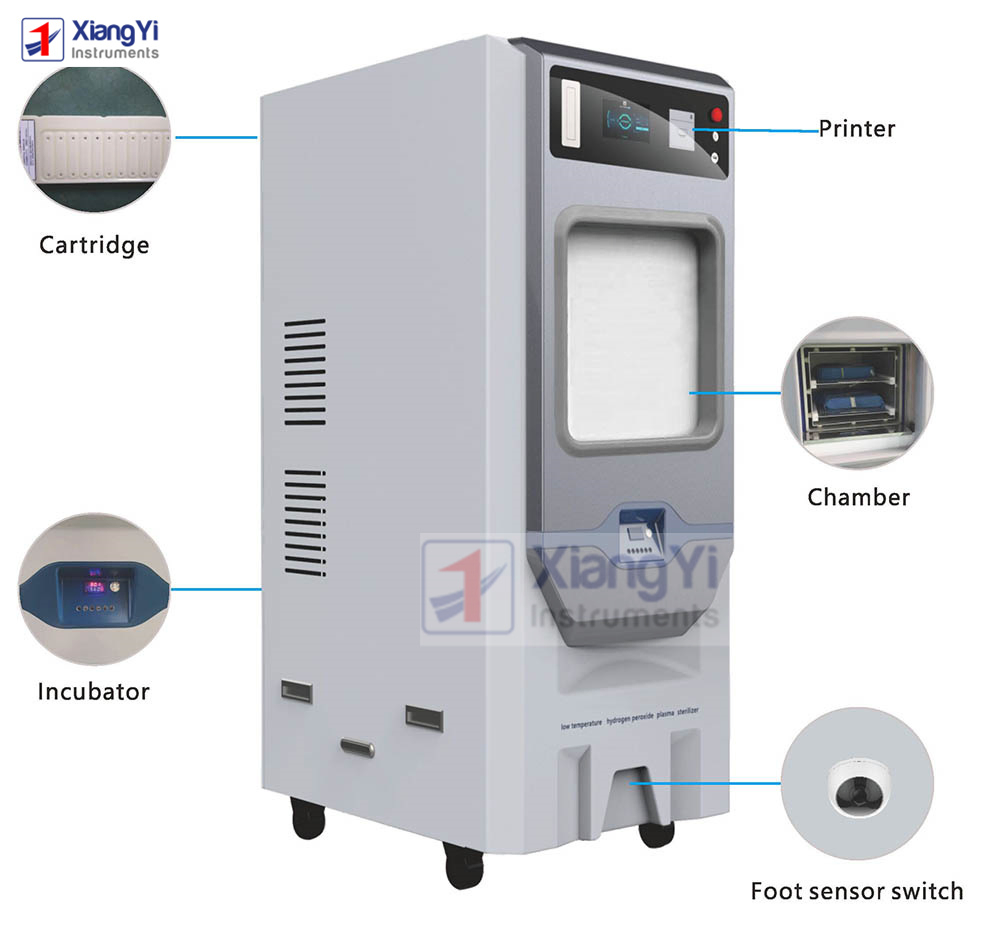

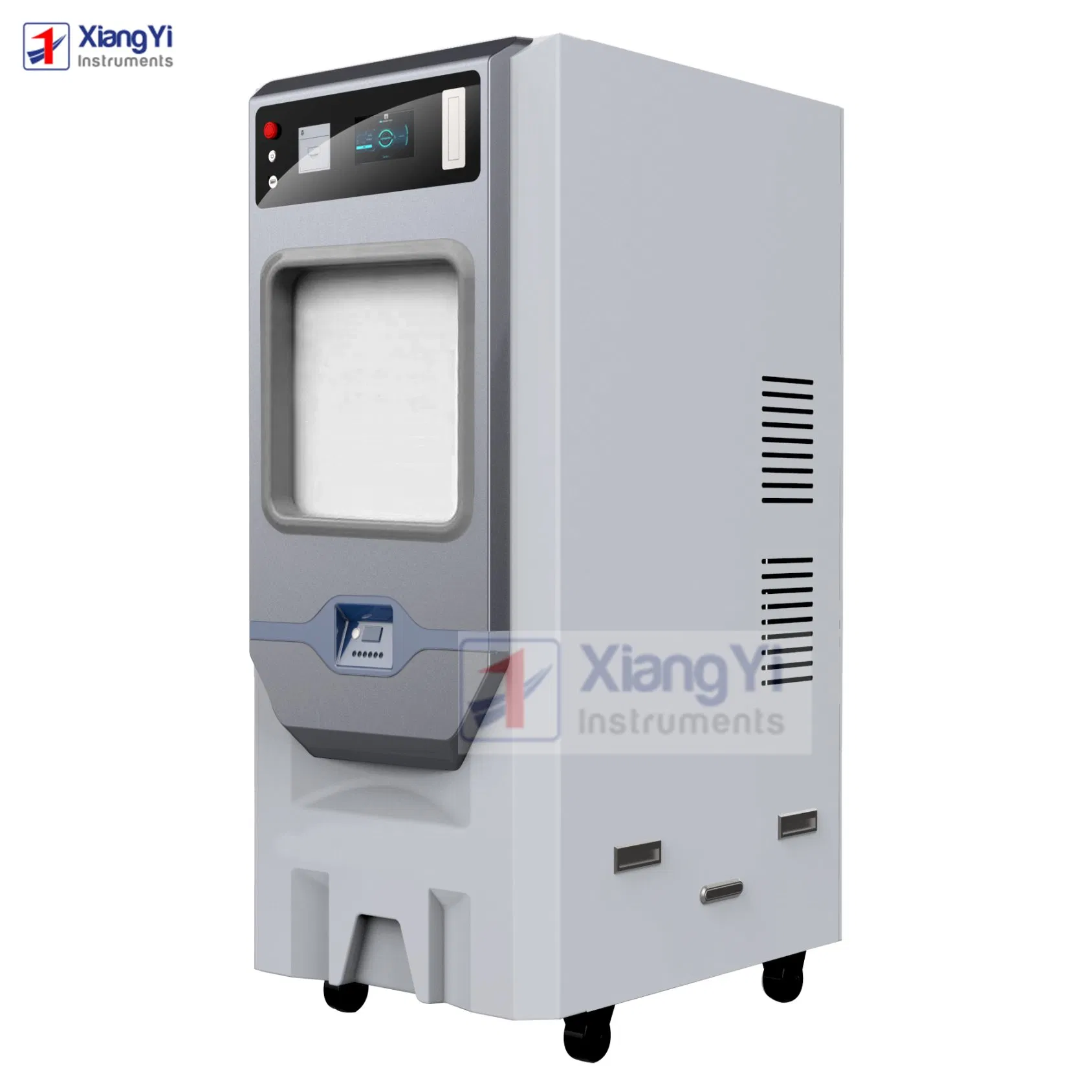

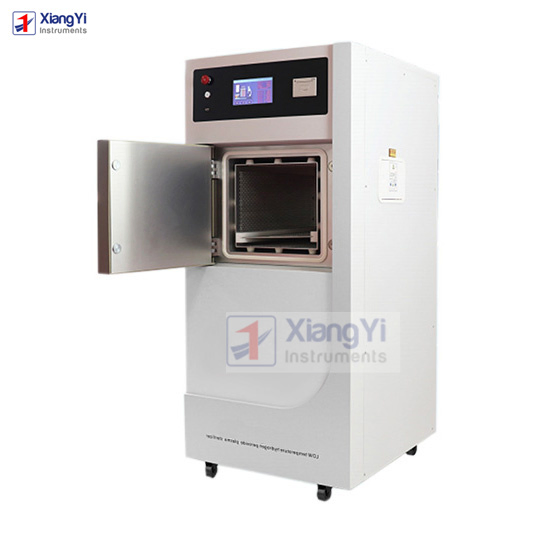

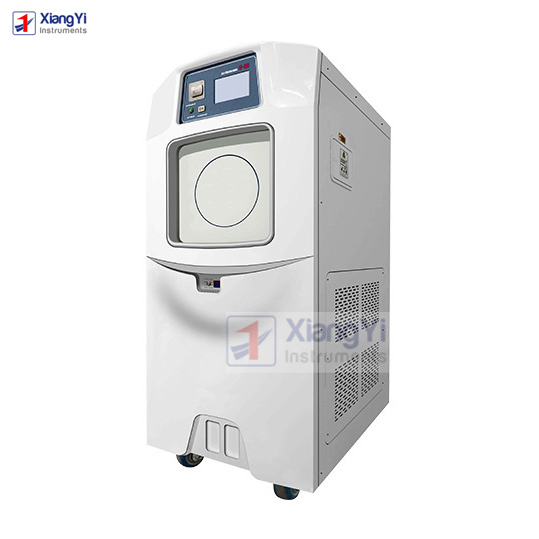

Low-temperature plasma hydrogen peroxide sterilizer is suitable for rapid sterilization of various medical surgical instruments in hospital operating rooms and disinfection supply centers. It features microcomputer control, touch operation, and a fully automatic lifting door.
This technology operates in a vacuum state, generating plasma through a high-frequency electric field. Active substances chemically react with microbial proteins and nucleic acids, disrupting their function. H2O2 is used as the medium to effectively kill microbes at low temperatures.
Compatible Items & Materials
●Hysteroscope, laparoscope, laryngoscope, and various rigid/hose endoscopes.
●Probes, fiber optic cables, and intracranial pressure sensors.
●Cold therapy probes, prostatectomy devices, and esophageal dilators.
●Laser heads, vibration motors, and electrocautery devices.
●Materials: Metal, glass, silicone, rubber, and more.

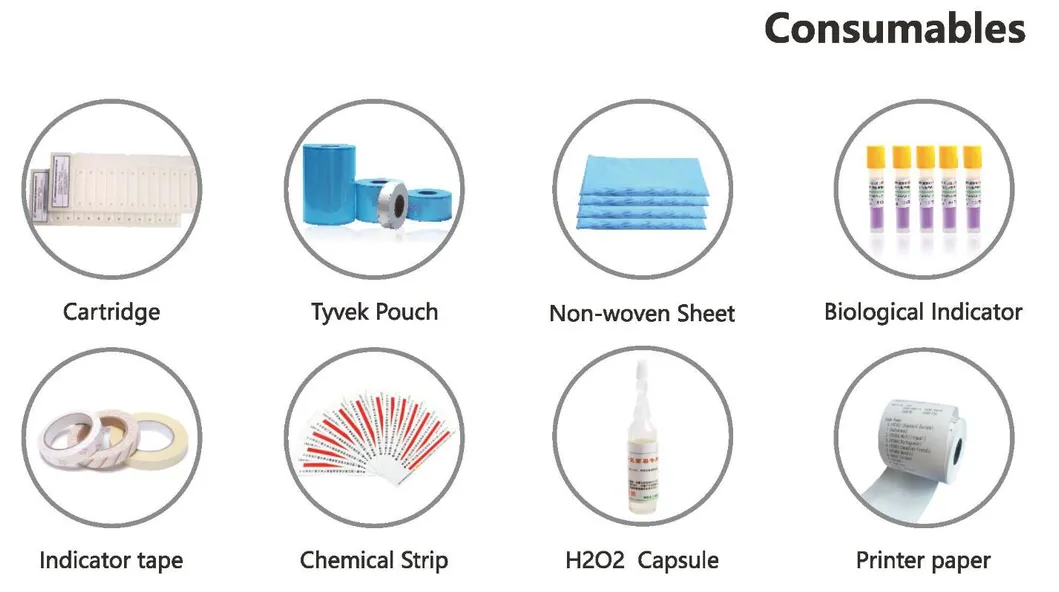

Hydrogen peroxide sterilizing agent, plasma biological indicator agent, plasma chemical indicator card (label), plasma indicator tape, non-woven fabric, and plasma medical packaging bags.
| Parameter |
Details |
| Product Model | HP-PS60M |

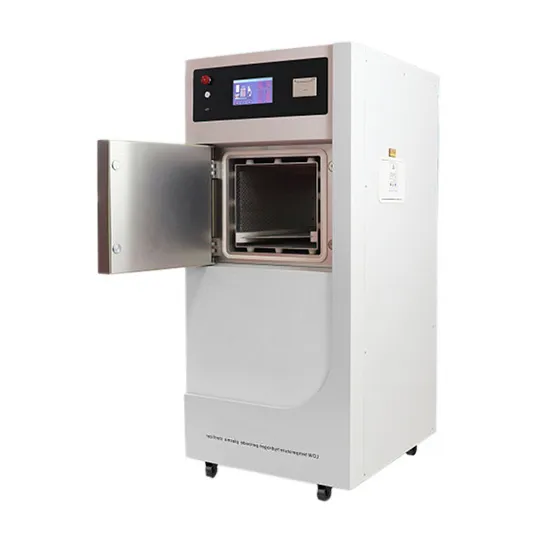

| Product Form | Manual door vertical |
| Heating Method | Electric heating |
| Power Consumption | 2.6KW / AC220V, 50Hz |
| Dimensions | 750 × 630 × 1510mm |
| Liner Size | 610 × 350 × 320mm |
| Effective Volume | 60L |
| Sterilization Temp | 50 ºC ± 5 ºC |
| Sterilizing Agent | Hydrogen peroxide (H2O2) 60% ± 2 |
| Sterilization Time | 35-50min |
| Vacuum Speed | Pumped to 50pa in 5 minutes |
| Chamber Material | 5052 high-quality aluminum (Thickness ≥ 8mm) |
| Control System | Siemens Smart PLC with 7-inch color touch screen |
| Data Storage | U disk storage (≥ 8G) & Built-in Micro-printer |
| Pressure Sensor | Built-in imported sensors |
| Safety Features | Over-voltage and over-temperature protection |
Frequently Asked Questions
How long does a typical sterilization cycle take?
A standard sterilization cycle for the HP-PS60M takes between 35 to 50 minutes, depending on the selected program.
What materials are compatible with plasma sterilization?
It is ideal for metal, glass, silicone, and rubber. It is specifically designed for delicate medical instruments like endoscopes, probes, and laser heads.
Does the machine provide records of the sterilization process?
Yes, the system includes a built-in micro-printer for real-time data and supports U disk storage capable of recording over 1 million data entries.
What is the required concentration of Hydrogen Peroxide?
The system uses a concentration of 60% ± 2 Hydrogen Peroxide (H2O2) as the sterilizing agent.
What are the safety protections included?
The HP-PS60M is equipped with explosion-proof flame retardant heating systems, along with over-voltage and over-temperature protection functions.
