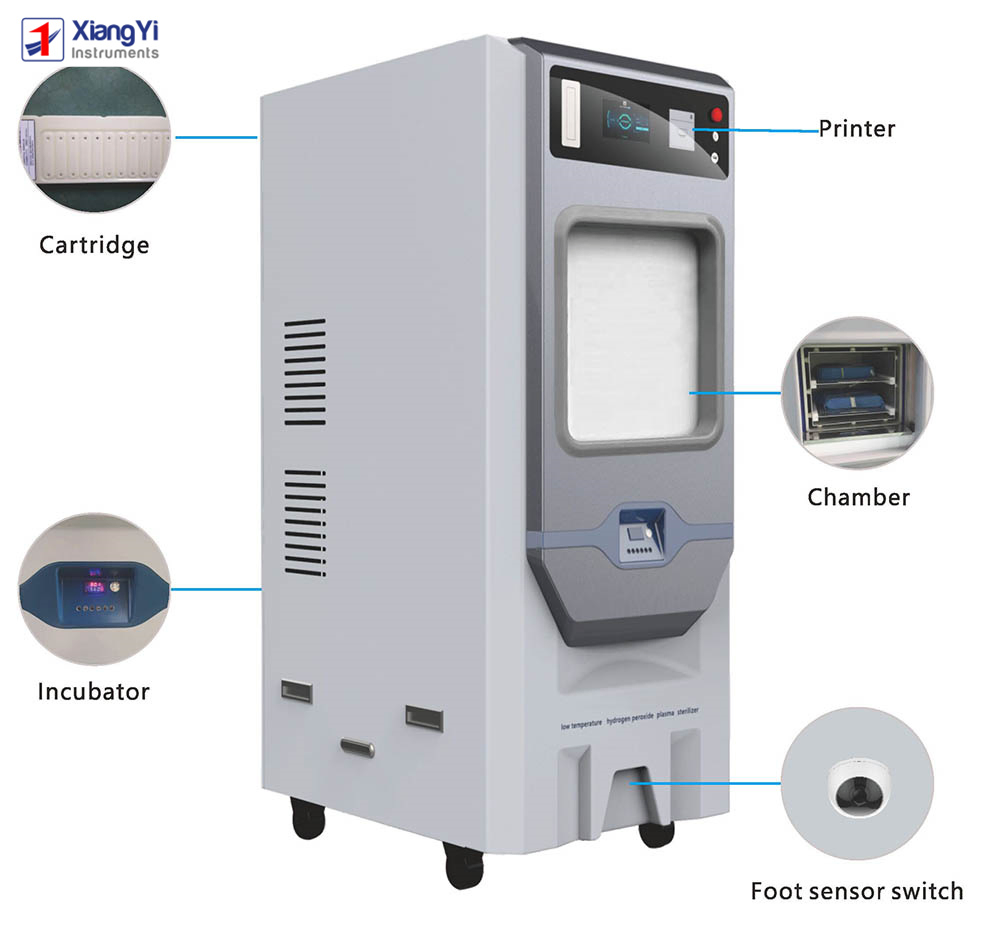

Low-temperature plasma hydrogen peroxide sterilizer is suitable for rapid sterilization of various medical surgical instruments in hospital operating rooms and disinfection supply centers. It features microcomputer control, touch operation, and a fully automatic lifting door.
The system operates in a vacuum state. A high-frequency electric field generates plasma within the sterilization chamber. Active substances chemically react with proteins and nucleic acids in microorganisms, destroying them. H2O2 acts as the medium to ensure the total elimination of microbial functions.
Suitable for: Hysteroscope, laparoscope, laryngoscope, probe, rigid endoscope, hose endoscope, ophthalmic lens, fiber optic cable, intracranial pressure sensor, cold therapy probe, prostatectomy device, esophageal dilator, electrocautery device, vibration motor, laser head, metal, glass, silicone, rubber, and more.

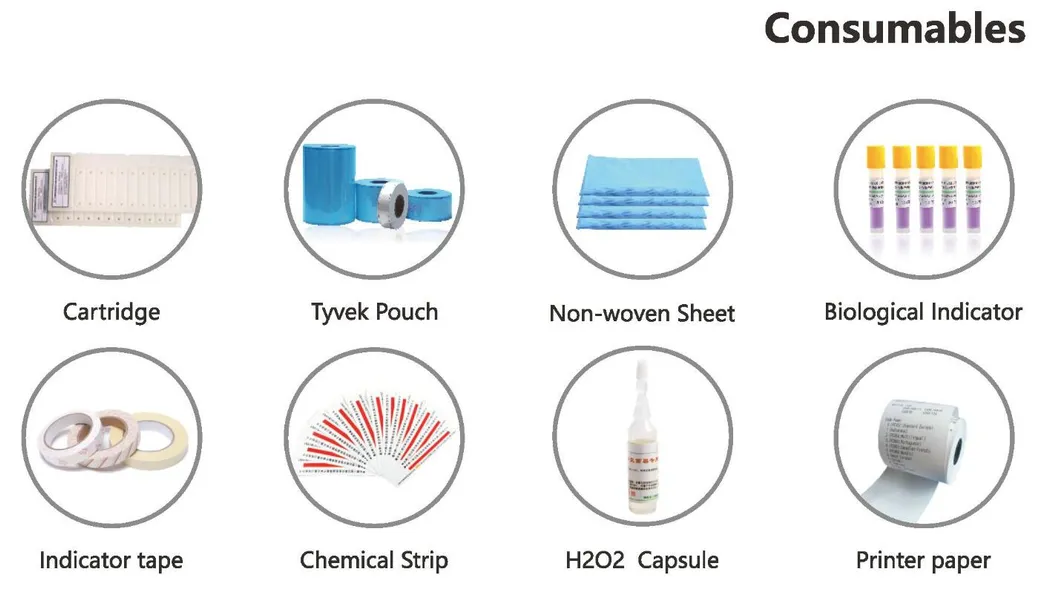

Includes: Hydrogen peroxide sterilizing agent, plasma biological indicator agent, plasma chemical indicator card (label), plasma indicator tape, non-woven fabric, and plasma medical packaging bags.
| Model | HP-PS100A | HP-PS130A | HP-PS220A |
|---|---|---|---|
| Form | Auto door vertical | Auto door vertical | Auto door vertical |
| Heating Method | Electric | Electric | Electric |
| Power | 3.4KW | 3.5KW | 4.3KW |
| Dimensions (mm) | 1070×810×1780 | 1070×810×1780 | 1070×810×1780 |
| Liner Size (mm) | 700×430×360 | 750×450×400 | 820×510×460 |
| Capacity | 100L | 130L | 190L |
| Sterilization Time | 45-50 min | 30-50 min | 45-50 min |
| Temperature | 50 ºC | 50 ºC | 50 ºC |
| Control System | Siemens PLC | Siemens PLC | Siemens PLC |
| Display | 7-inch Touch Screen | 7-inch Touch Screen | 7-inch Touch Screen |
| Agent | 60% ± 2 concentration Hydrogen Peroxide (H2O2) | ||
| Chamber Material | Rectangular Aluminum Alloy 5052 (Thickness ≥2mm) | ||
