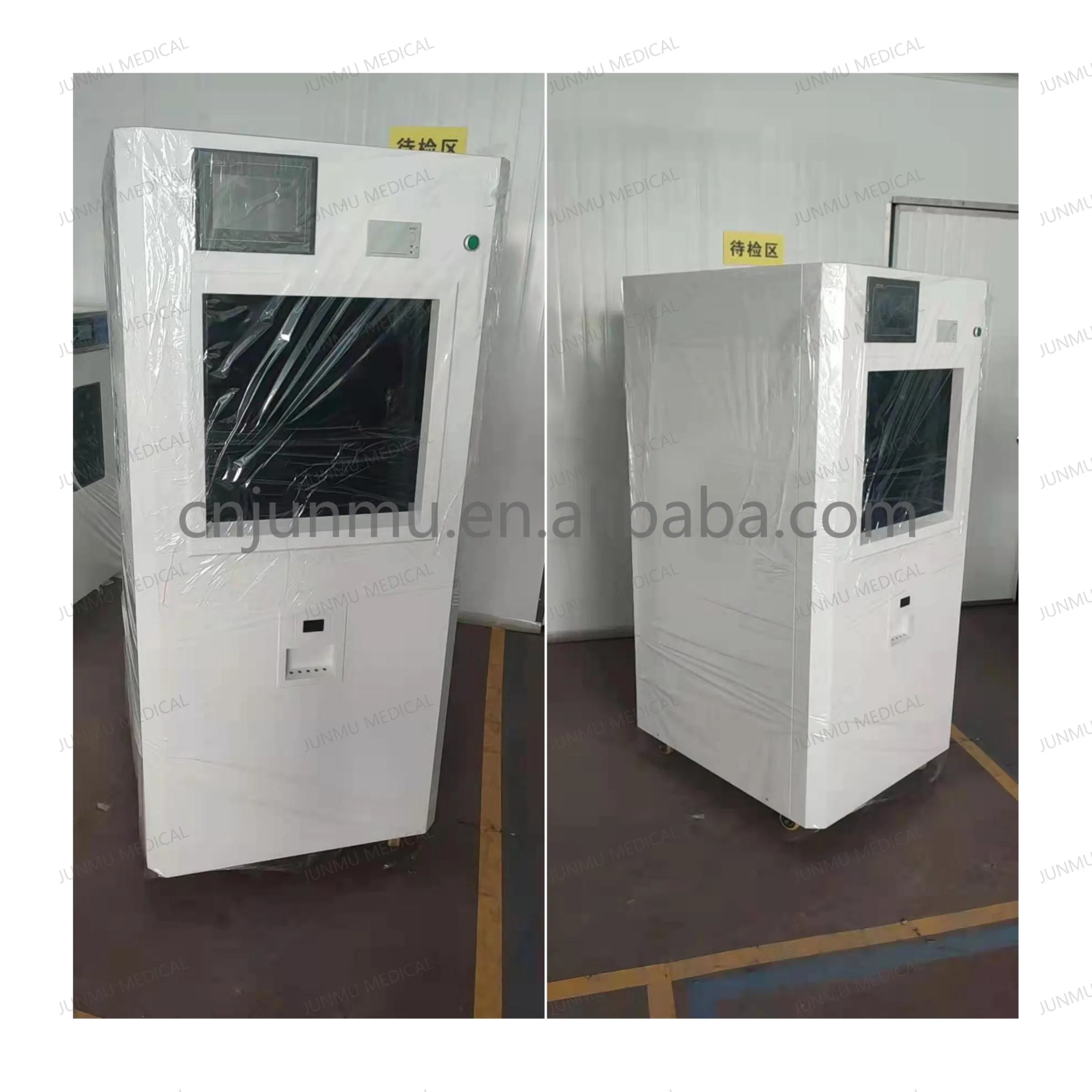

Hospital Plasma Sterilization Low Temperature Plasma Sterilizer 60L 128L 180L

i

Basic Specifications

Model:HTYD-60L

Certification:CE, FDA, ISO13485

Material:Stainless Steel

Sterilization Temp:50℃±5℃

Voltage:220V

Display:LCD Screen

Alarm System:Automatic High Temp Alarm

Weight:265kg

Control:Automatic Control

Production Capacity:1000 Units

P

Product Description

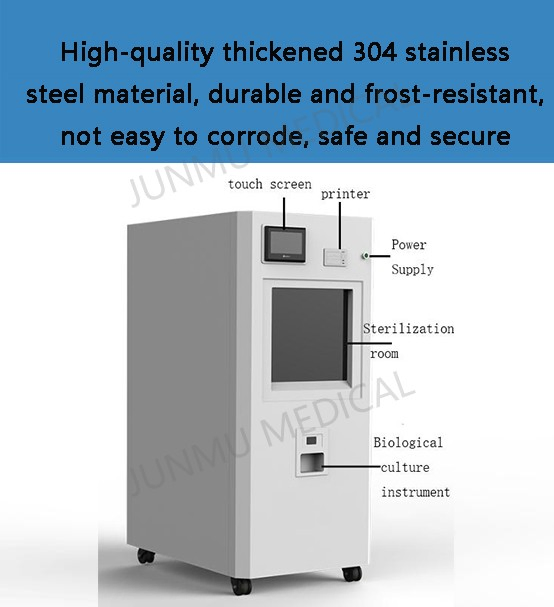

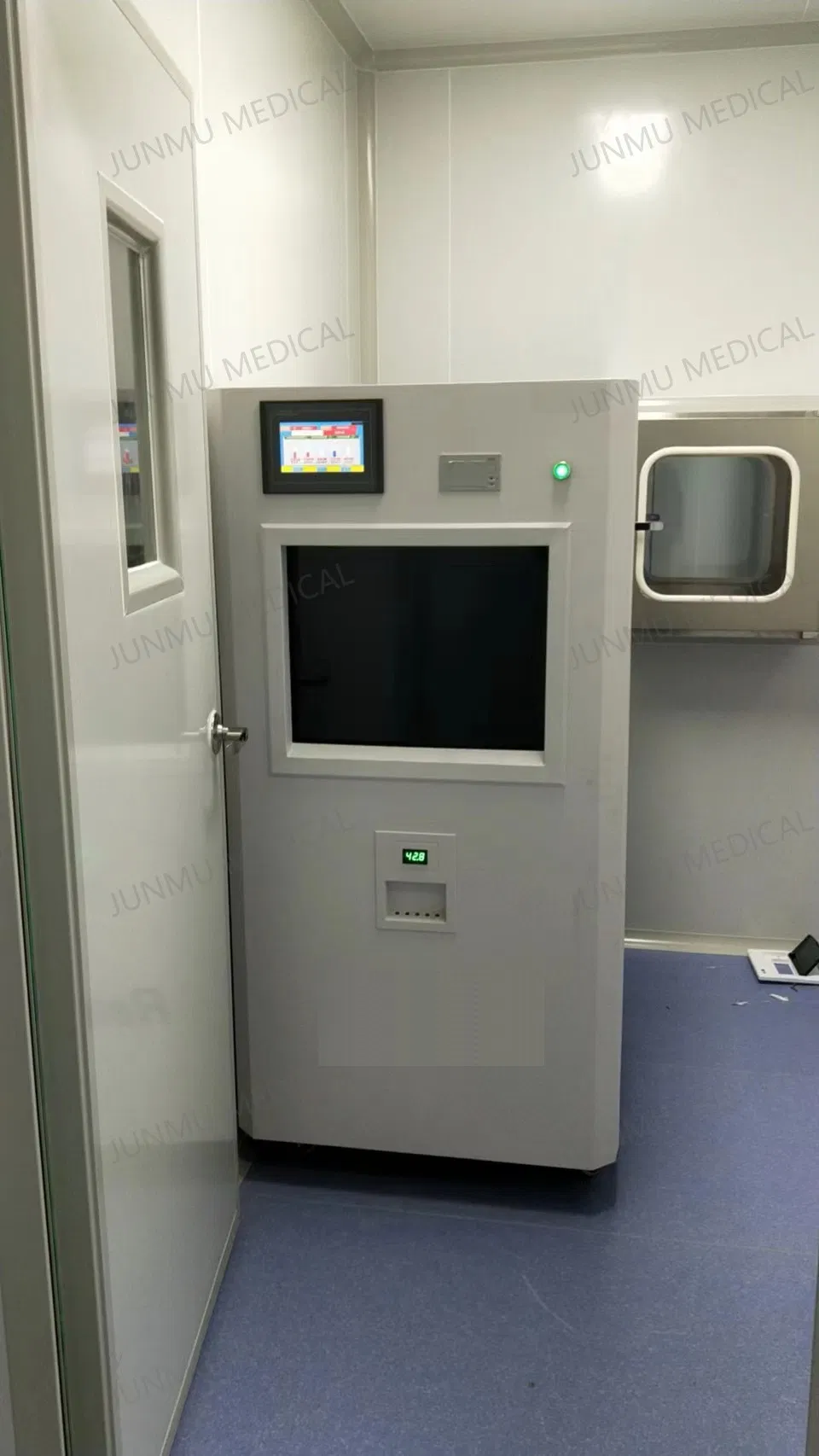

60L Hydrogen Peroxide Low Temperature Plasma Sterilizer
The low temperature hydrogen peroxide plasma sterilizer combines hydrogen peroxide gas and plasma under low temperature and negative pressure conditions. It ensures full contact with hydrogen peroxide vapor through a high-frequency ionization process in the sterilization chamber, generating plasma to eliminate microorganisms and achieve a high level of sterilization.

A

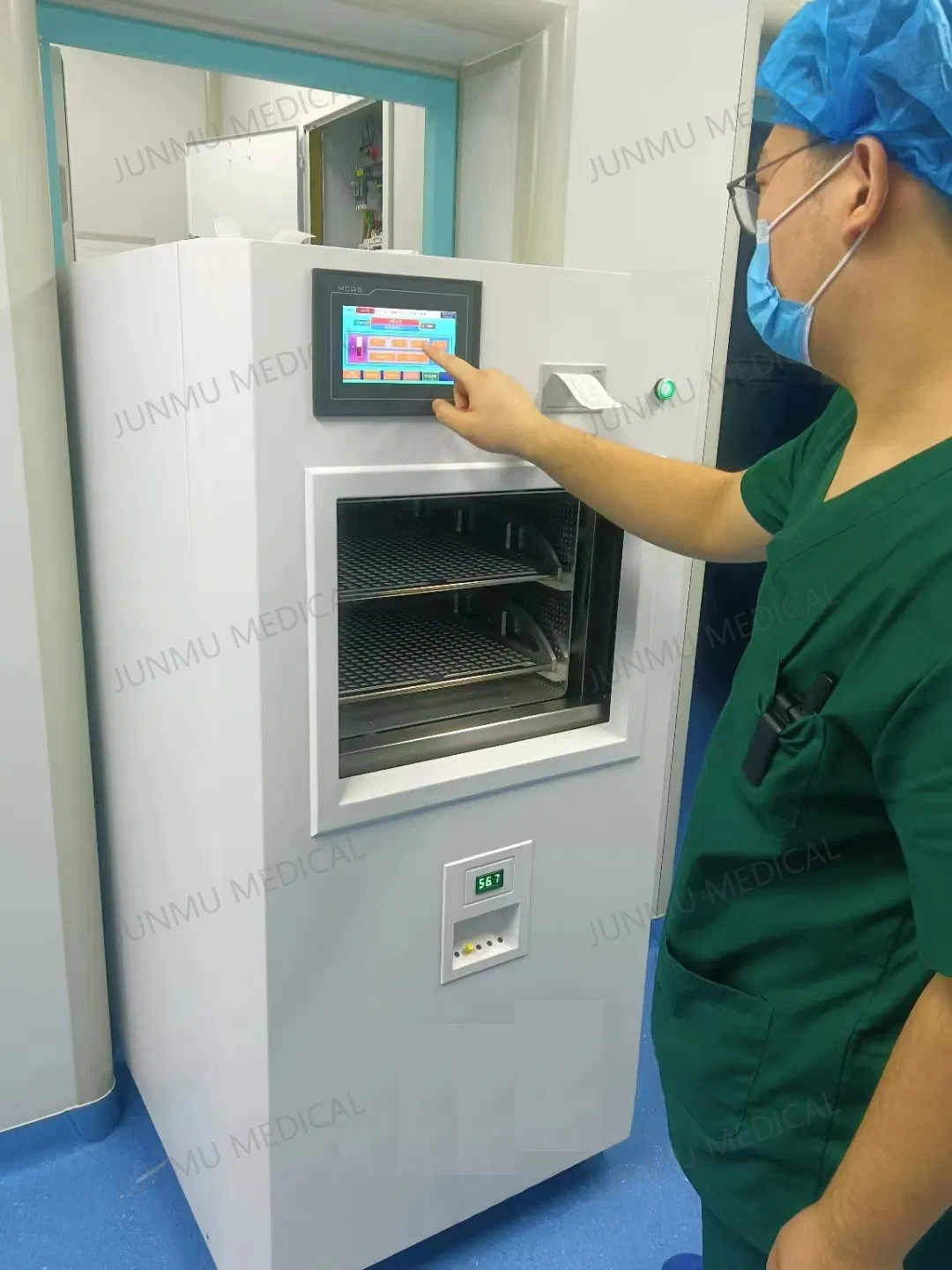

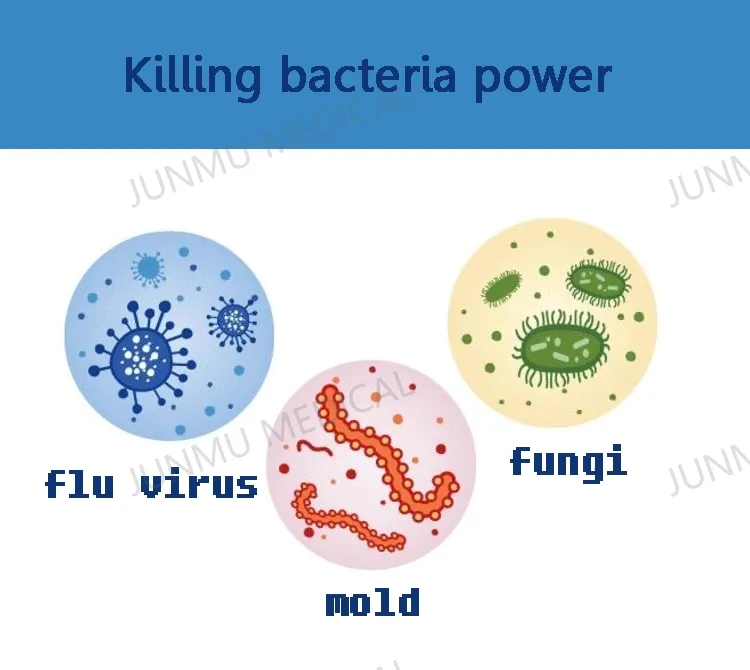

Application Scenarios

T

Technical Parameters

NO.	Feature Name	Technical Description
1	Model	HTYD-60L
2	Internal Dimensions	653832 cm
3	External Dimensions	8269154 cm
4	Weight	233 kg
5	Sterilization Method	Hydrogen peroxide plasma technology
6	Sterilization Time	Rapid ≤28 min; Standard ≤35 min; Strengthened ≤55 min
7	Control PLC	Original Import: display working process parameters
8	Vacuum Pump	Low noise, high stability, 16 cubic meters per hour
9	Pressure Transmitter	Original Germany Import: high precision
10	Safety System	Electric lift door with anti-clamp design

V

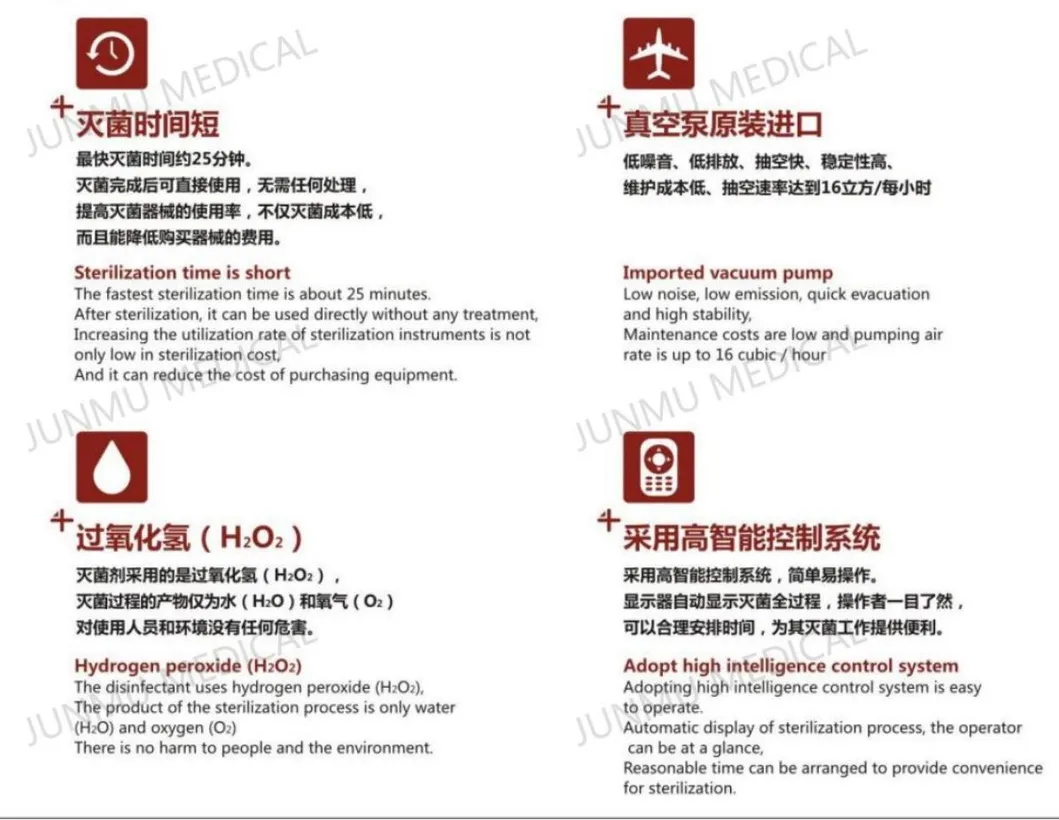

Our Advantages

C

Certifications

S

After-Sales & Support

✓ Professional Sales

We value every inquiry with competitive offers and assist with project tenders and documentation.

✓ Punctual Delivery

Tight production scheduling and shipping insurance ensure your order arrives on time.

✓ Warranty Policy

1-year international standard warranty. We handle repairs or part replacements free of charge.

✓ Lifetime Support

Spare parts available for lifetime use. Complains addressed within 24 hours.

E

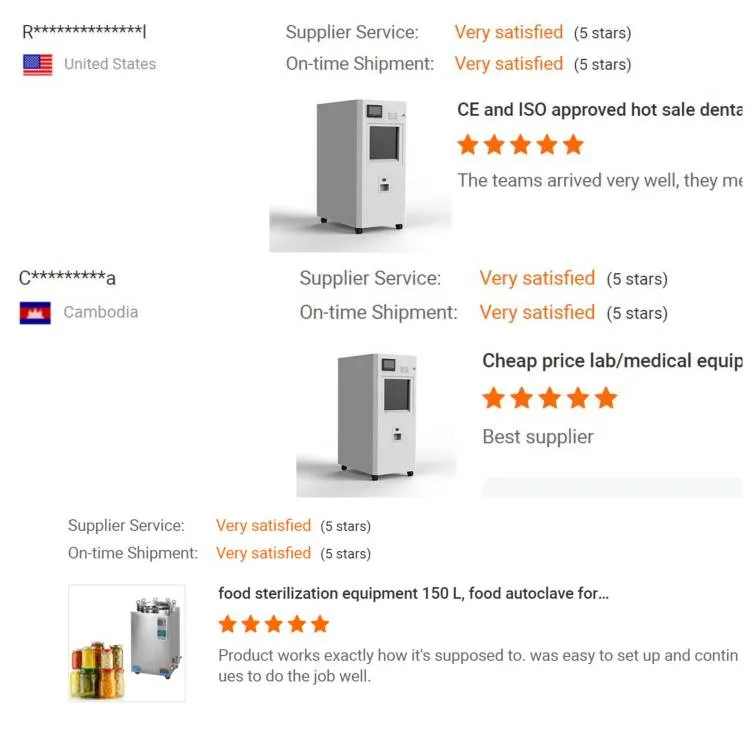

Customer Feedback & Exhibitions

U

About Us

We are a professional supplier and service provider of disinfection and sterilization equipment. Our range includes vertical, horizontal, and portable autoclaves, plasma sterilizers, and ethylene oxide sterilizers. Our products are widely utilized in supply rooms, operating rooms, endoscopy centers, dentistry, laboratories, and scientific research institutions. We focus on domestic mass production and global export with excellent after-sales support.

?

Frequently Asked Questions

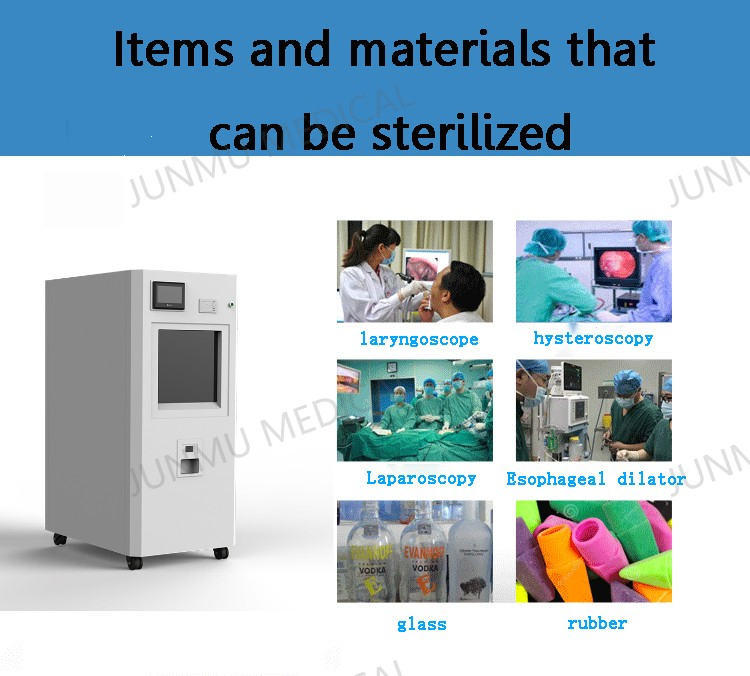

Q: What materials are suitable for plasma sterilization?

A: It is ideal for instruments sensitive to high temperature and moisture, such as endoscopes, catheters, and electronic medical devices. It is not suitable for powder, oil, or cotton fabrics.

Q: Is the hydrogen peroxide plasma safe for the environment?

A: Yes, the sterilization process leaves no toxic residues. The hydrogen peroxide breaks down into water and oxygen, making it environmentally friendly and safe for staff.

Q: How long does a standard sterilization cycle take?

A: The rapid cycle takes approximately 28 minutes, while the standard cycle takes about 35 minutes, allowing for quick turnaround of medical instruments.

Q: Does the equipment require special installation?

A: It generally only requires a standard 220V power supply. Since it produces no toxic exhaust, special ventilation or detoxification equipment is usually not required.

Q: How is sterilization efficiency monitored?

A: We use biological monitoring involving Bacillus subtilis and Bacillus thermophilus to ensure 100% sterilization rates.

Q: What kind of after-sales warranty is provided?

A: We provide a 12-24 month warranty period and ensure the availability of all spare parts for the lifetime of the equipment.
