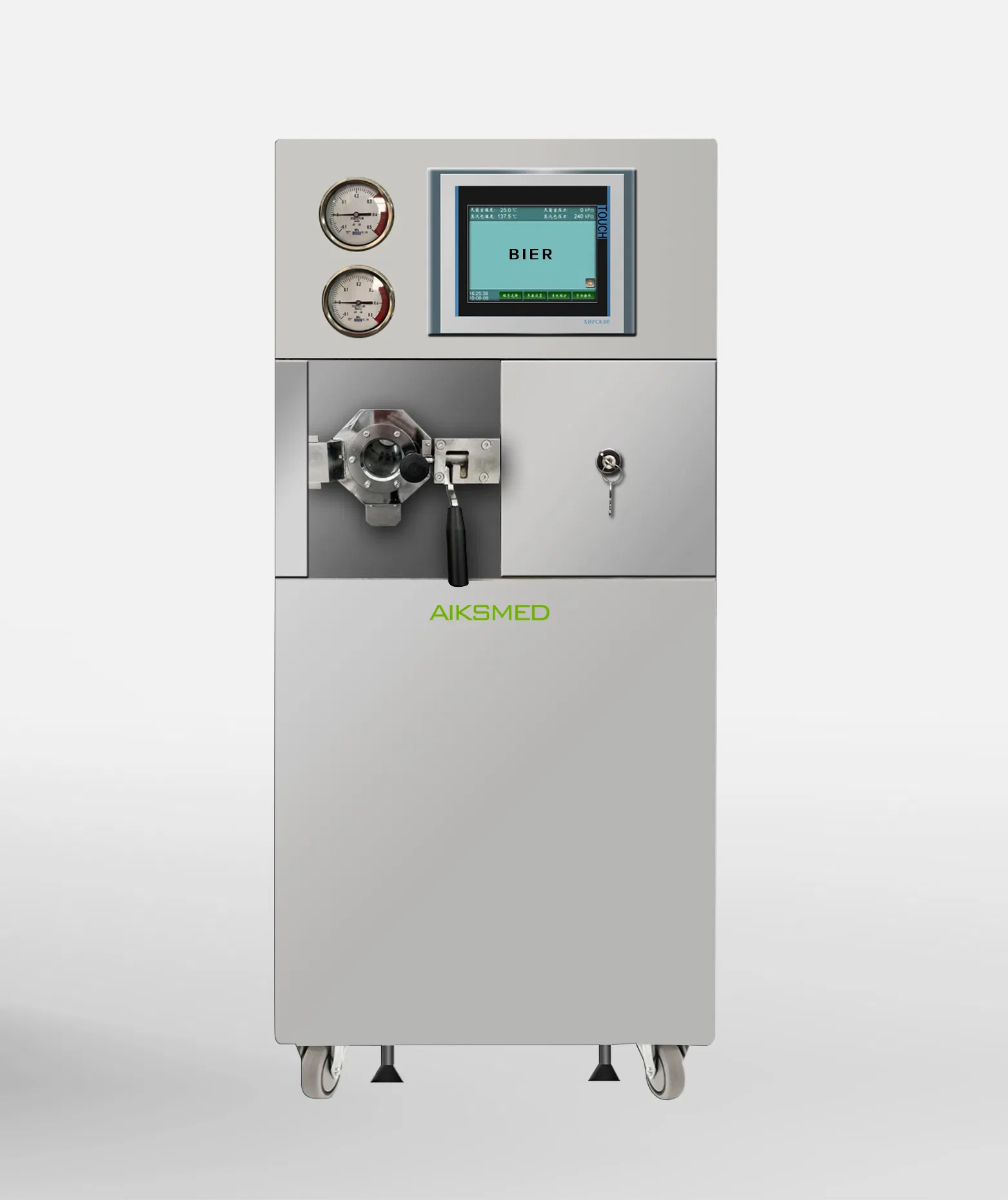

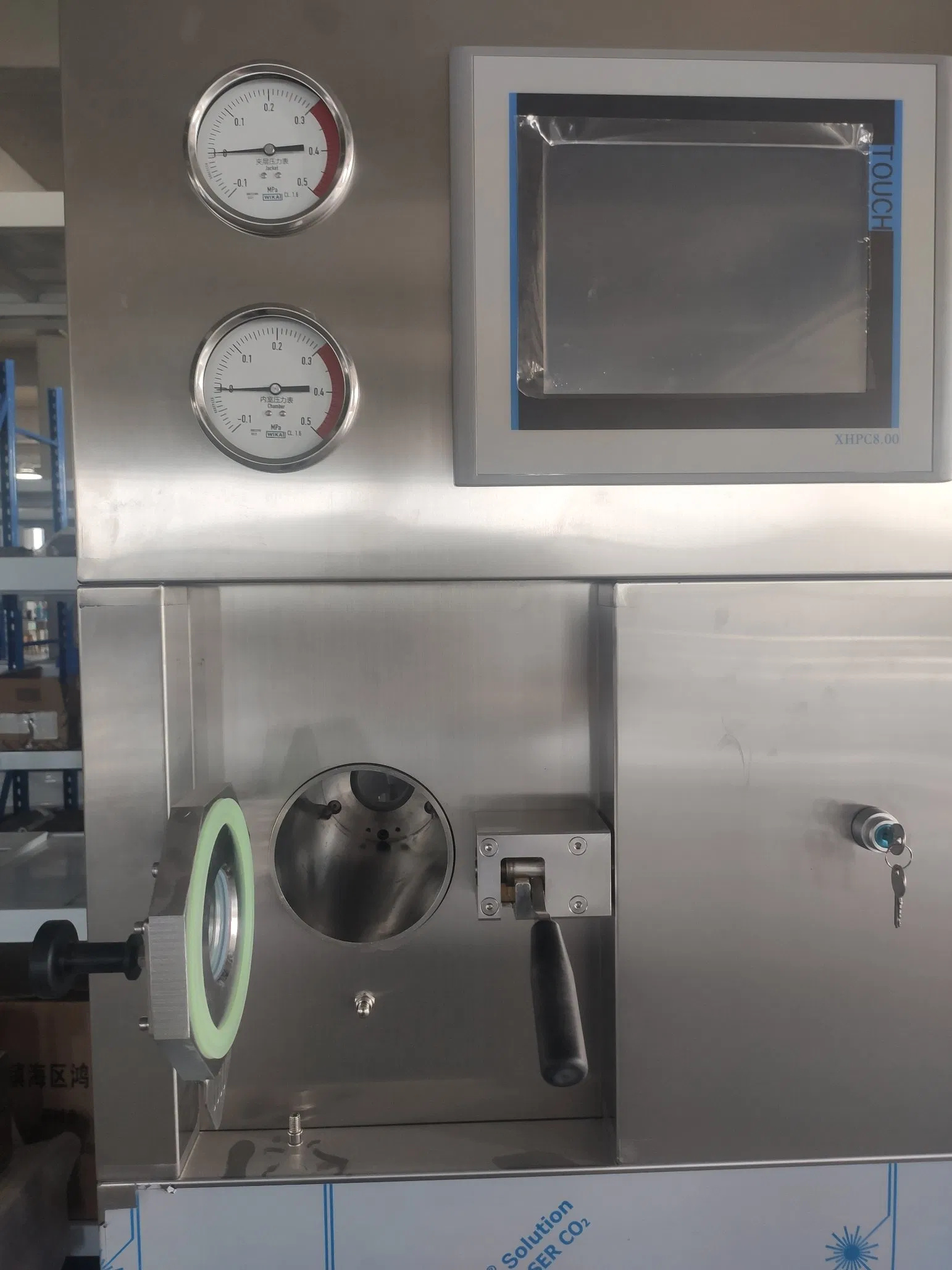

Industry Autoclave Sterilization Equipment for Indicator Steam

Customization:	Available
Theory:	Pressure Steam
Type:	Pressure Steam Sterilization Equipments

Basic Information

Model NO.

KLY

Certification

CE, EEC

Electric Tension

380V

Material

Stainless Steel

Categories

Pulse Vacuum Steam Sterilizer

Loading Capacity

3L, 5L

Essential Details

Name	Biological Indicator Evaluation Resistometer (BIER)	Application	Biological Indicator, Chemical Indicator, Autoclave Tape
Model	KLY Series	Working Temp	110~145ºC
Volume	3L, 5L	Working Pressure	-0.1~0.35 MPa
Warranty	1 Year	Supply Ability	300 Sets/Year

Working Principle

BIER Vessel evaluates the resistance of chemical and biological tapes and indicators to moist heat sterilization. It is also applicable to the identification of products by Centers for Disease Control and Prevention and testing facilities.

Product Features

PLC control, automatic and reliable.

10″ touch screen (HMI) for process and parameters.

Equipped with PC and printer for remote monitoring.

Built-in steam generator, no external supply needed.

Safety valve to avoid over-pressure.

Water shortage protection function.

Door pressure safety interlock mechanism.

Diverse preset cycles with customization options.

Product Parameters

Door Type	Model	Volume (L)	Chamber (Φ*Dmm)	Overall (LWHmm)
Hinged Door	KLY-3	3	125*250	9007001700
Hinged Door	KLY-5	5	150*250	9007001700

Packaging & Shipping

Lead Time: 1-1 set: 60 days | 2-5 sets: 65 days | 6-10 sets: 75 days | >10 sets: Negotiable.

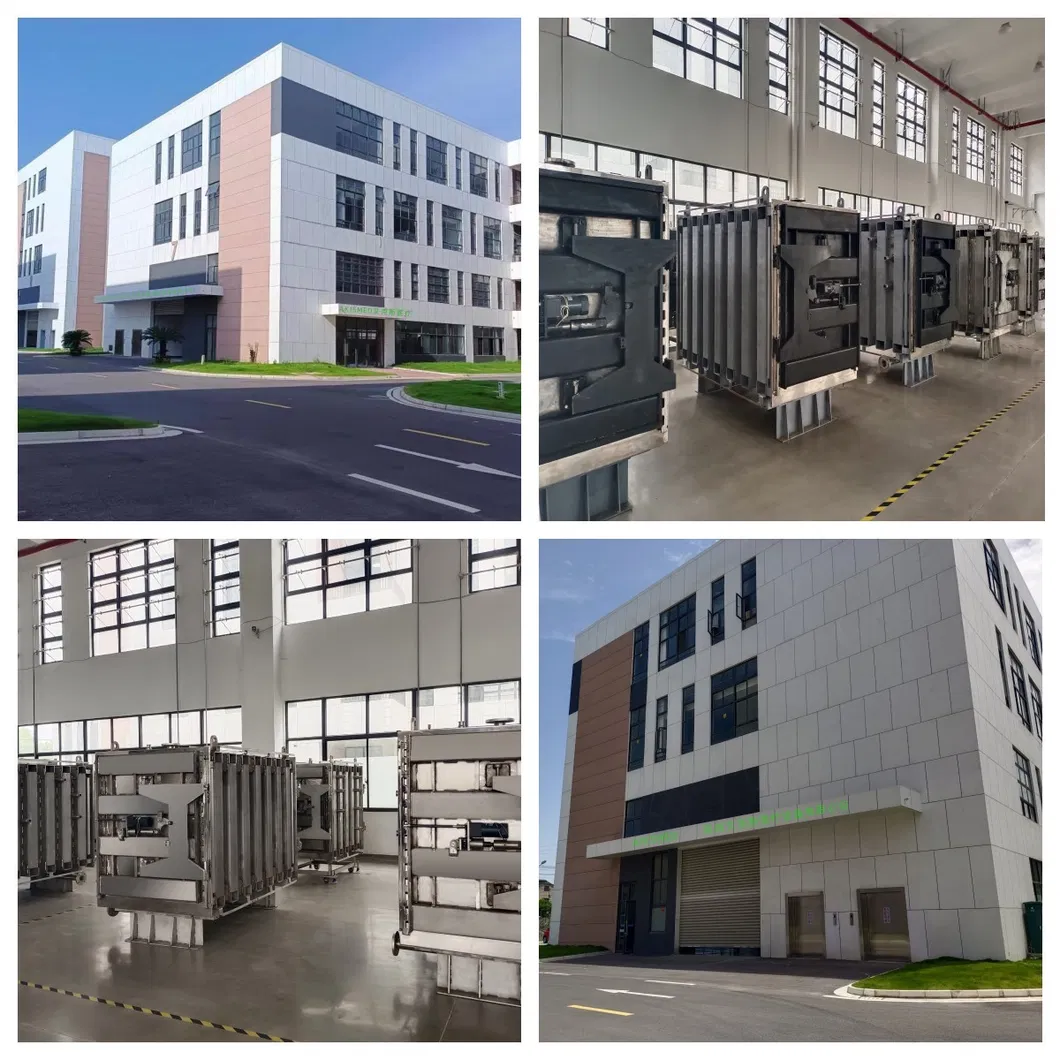

Expert Manufacturing

We are an expert manufacturer of diversified sterilizers and autoclaves, ranging from Cassette Autoclaves for dental & ophthalmology clinics, Laboratory Steam Sterilizers for research organizations, and Superheated Water Cascade Sterilizers for pharmaceutical industries.

Frequently Asked Questions

What is FAT and SAT?

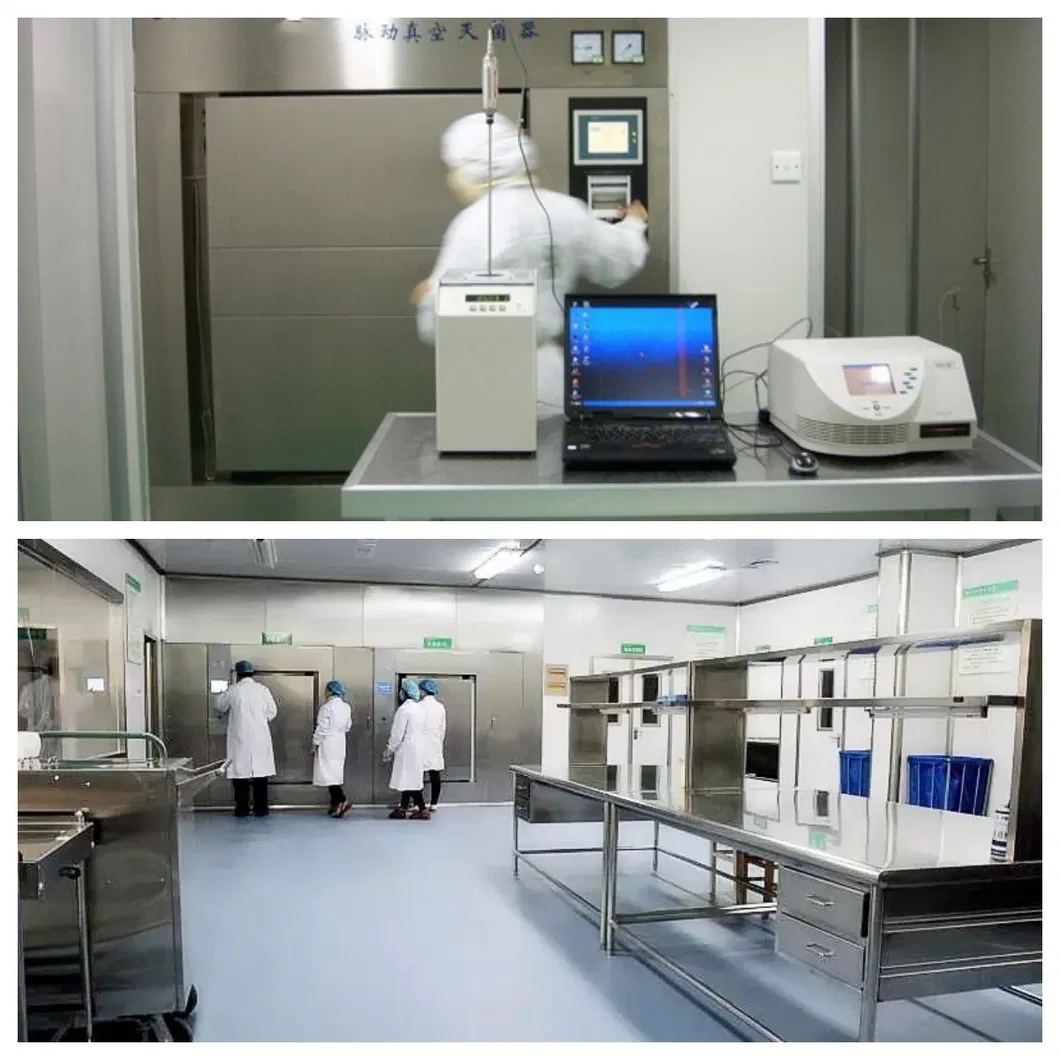

FAT means Factory Acceptance Test, where customers can test machines at the factory before delivery (usually 2-3 days). SAT means Site Acceptance Test, where engineers provide on-site equipment commissioning and staff training.

Is it possible to restart sterilizers that have been idle for years?

Yes, we have abundant experience in upgrading and restarting sterilizers manufactured by world-famous brands and can provide professional advice and solutions.

Steam sterilizer vs. superheat water autoclave for ampoule injection?

For glass ampoules (1ml-10ml), steam sterilization is recommended for fast heating and lower cost. For containers over 10ml, superheated water cascade sterilizers are better to reduce breakage rates.

What materials are used for the sterilization chamber?

The sterilizers are constructed using high-quality Stainless Steel to ensure durability, corrosion resistance, and safety during the high-pressure sterilization process.

Which certifications do these sterilizers hold?

Our products are compliant with international standards and hold both CE and EEC certifications, ensuring they meet rigorous safety and quality requirements.

What is the standard lead time for a single unit?

For a quantity of 1 set, the standard lead time is approximately 60 days. For larger orders, the timeframe ranges from 65 to 75+ days depending on the quantity.
