Product Overview

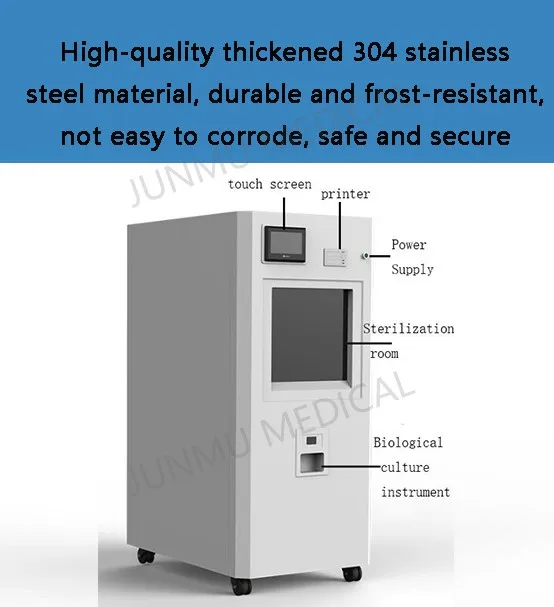

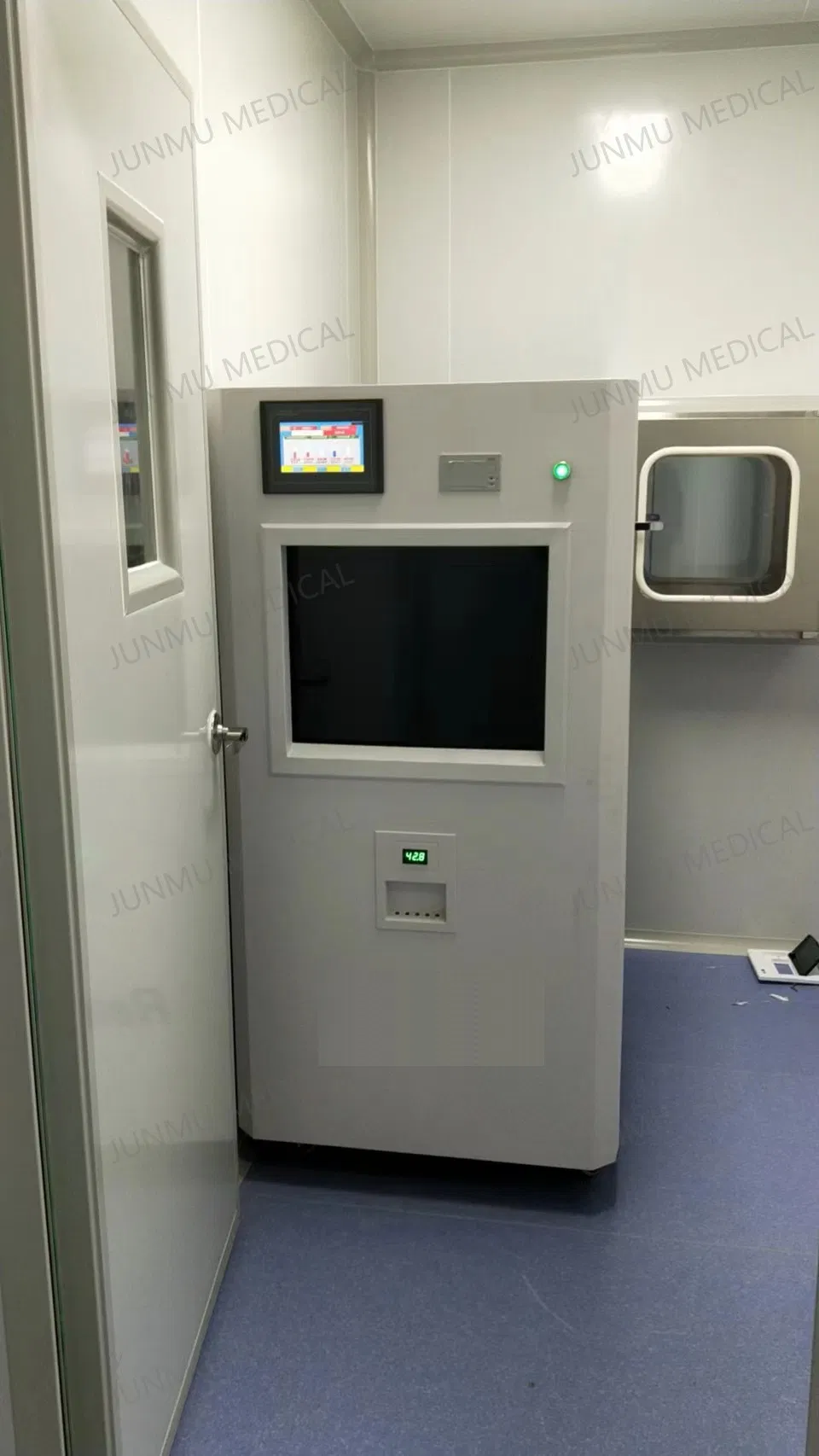

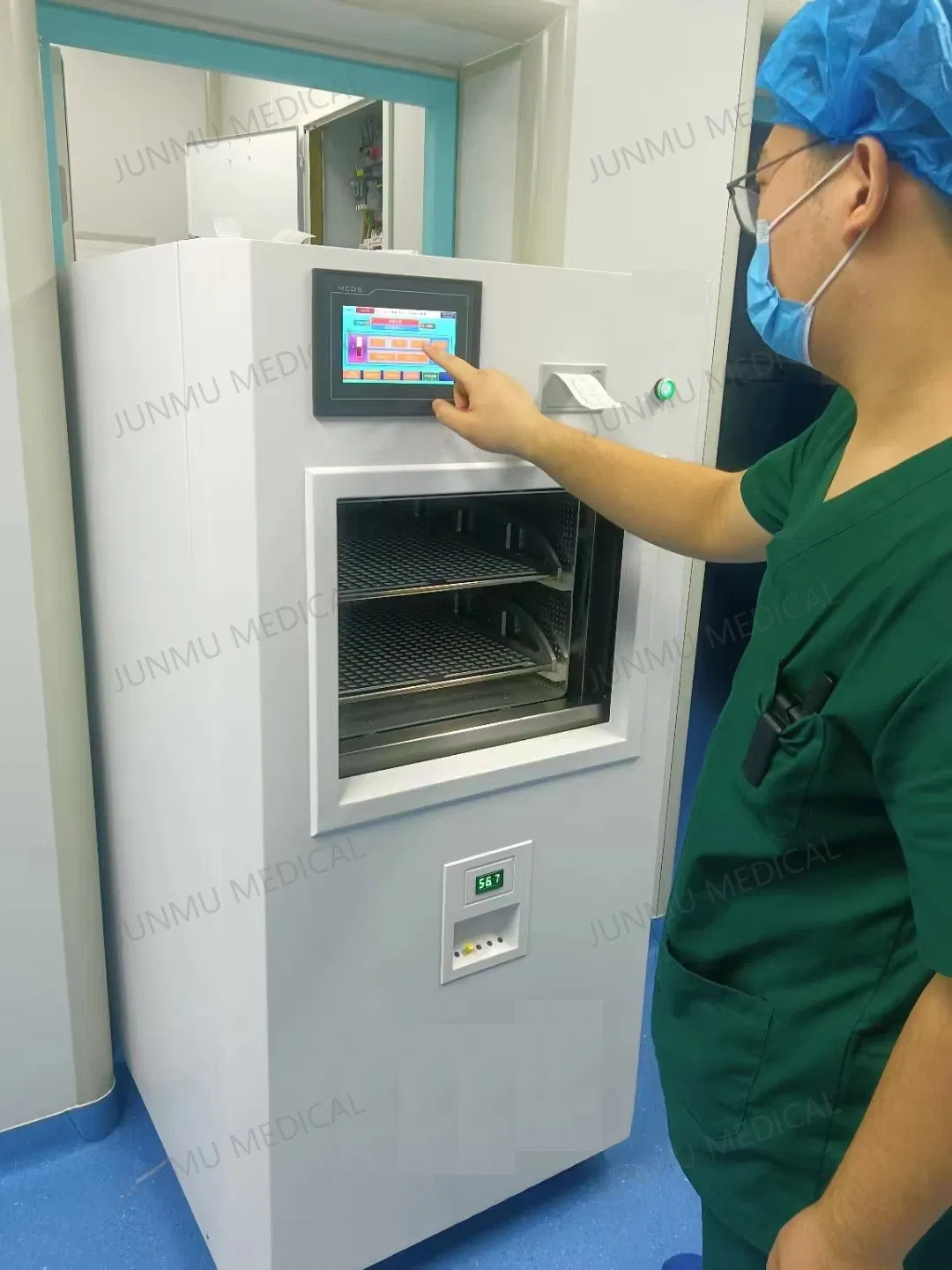

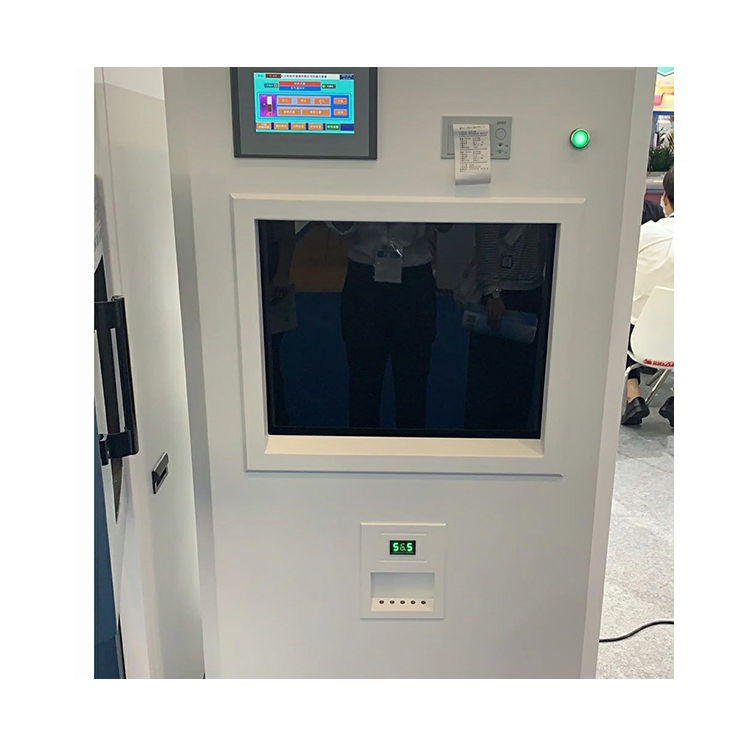

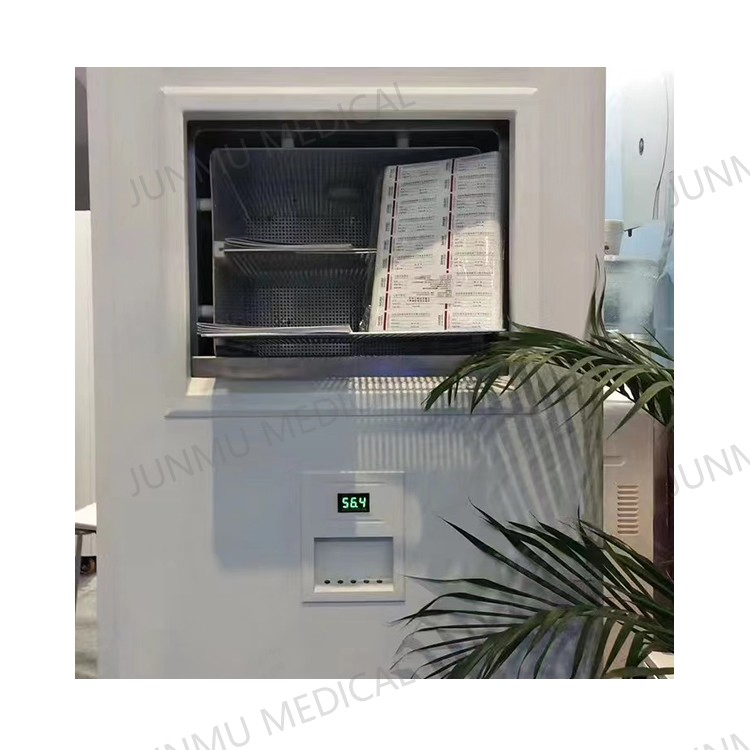

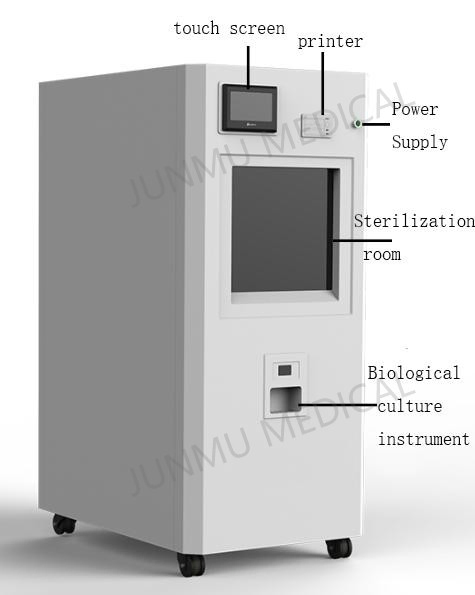

60L Hydrogen Peroxide Low Temperature Plasma Sterilizer
The low temperature hydrogen peroxide plasma sterilizer utilizes a combination of hydrogen peroxide gas and plasma under low temperature and negative pressure conditions. It ensures full contact with the hydrogen peroxide vapor within the sterilization device. By applying high-frequency ionization in the sterilization chamber, it generates plasma that effectively eliminates microorganisms to achieve a complete sterilization effect.
| Basic Information |
| Model NO. | HTYD-60L |
| Certification | CE, FDA, ISO13485 |
| Electric Tension | 220V |
| LCD Display | With LCD Display |
| Alarms | Ultra High Temperature & Automatic Alarm System |
| Material | Stainless Steel |
| Weight | 265kg |
| Sterilization Temp | 50℃±5℃ |
| HS Code | 8419200000 |
Technical Specifications
| No. |
Parameter Item |
Technical Description |
| 1 | Model | HTYD-60L |
| 2 | Internal Dimensions | 65*38*32 cm |
| 3 | External Dimensions | 82*69*154 cm |
| 4 | Weight | 233 kg |
| 5 | Scope of Application | Suitable for vacuum negative pressure and hydrogen peroxide gas. Ideal for high temperature sensitive instruments. |
| 6 | Method | Hydrogen peroxide plasma technology |
| 7 | Sterilizer Liquid | High purity H2O2 injection (60% concentration) with automatic addition system |
| 8 | Sterilization Speed | Rapid: ≤28 min; Standard: ≤35 min; Strengthened: ≤55 min |
| 9 | Temperature | 50ºC±5ºC |
| 10 | Records | Computer printing (time, pressure, process); Storage > 10 years |
| 11 | Door Type | Electric lift door with safety anti-clamp design |
| 12 | Residue | Non-toxic, no environmental impact |
| 13 | Vacuum Pump | Low noise, high stability, 16 m³/hour |
| 14 | Control System | Imported PLC with touch display |
| 15 | Power Supply | 220V / 50Hz |

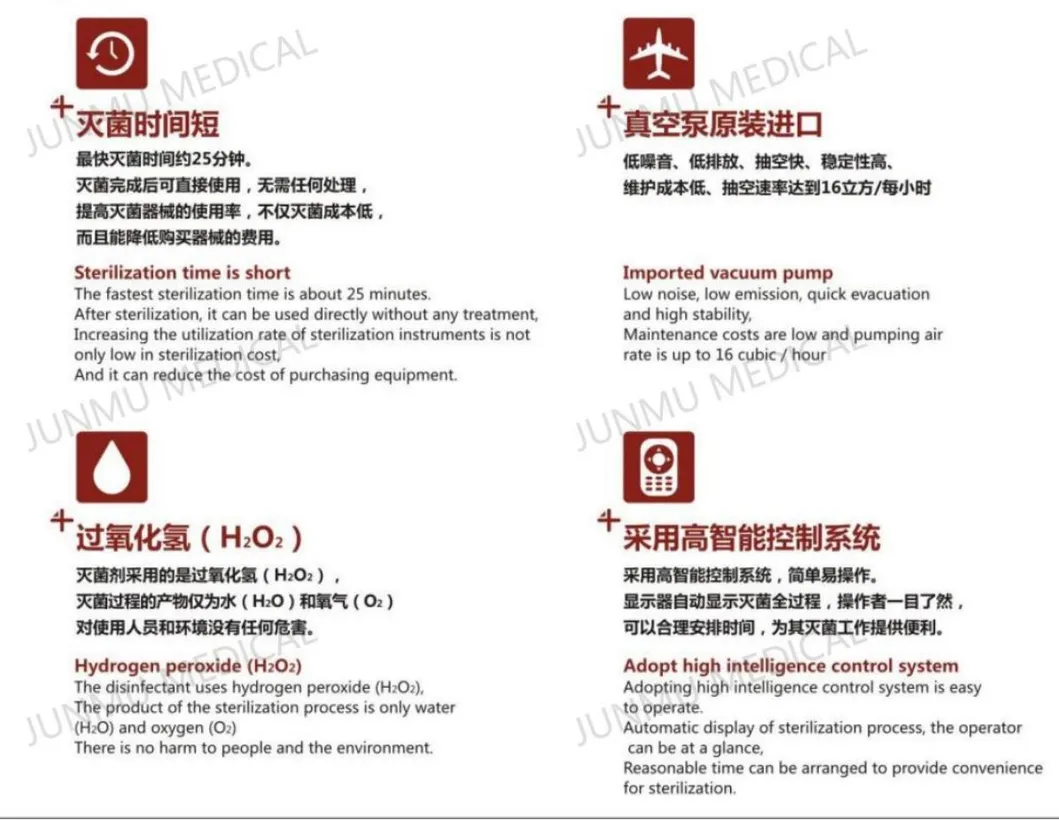

Our Advantages
Certifications
After-Sales Service & Warranty
- Professional Support: Quick competitive offers and technical assistance for projects and tenders.
- Punctual Delivery: Tight production scheduling ensures on-time shipping with full inspection reports.
- Extended Warranty: 12-24 months warranty provided after goods arrive.
- Lifelong Maintenance: All spare parts available for the lifetime of the equipment.
- 1-Year International Warranty: Free repair or replacement for quality-related malfunctions from the date of purchase.

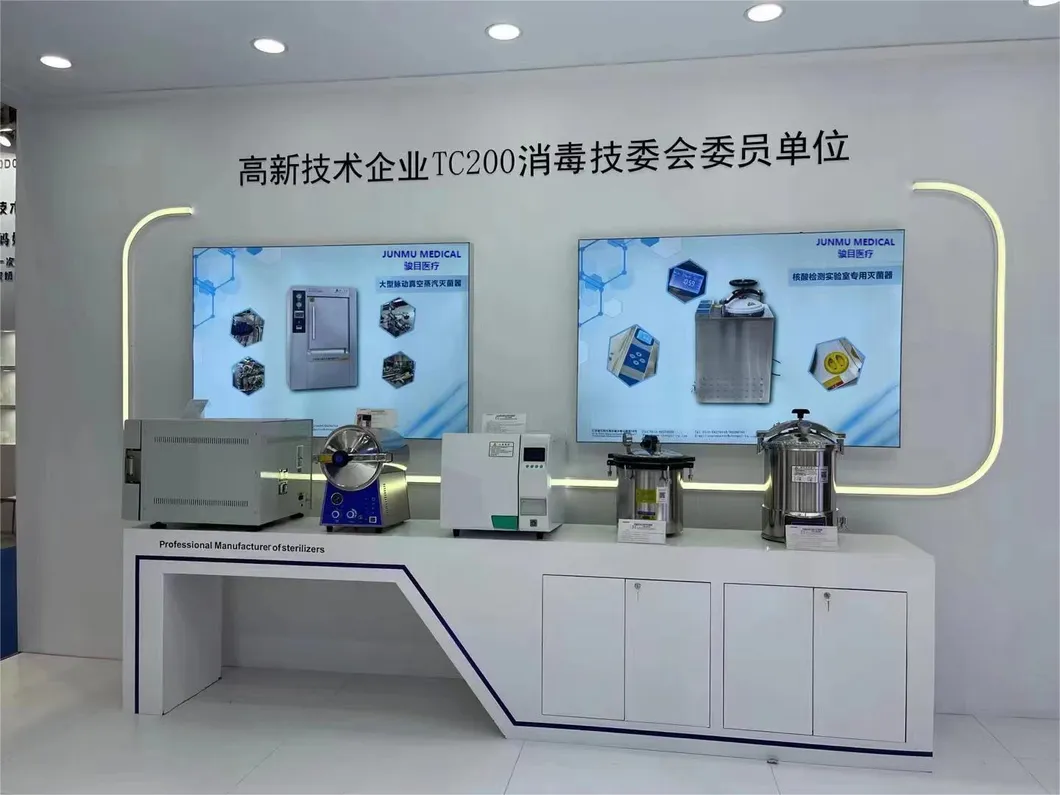

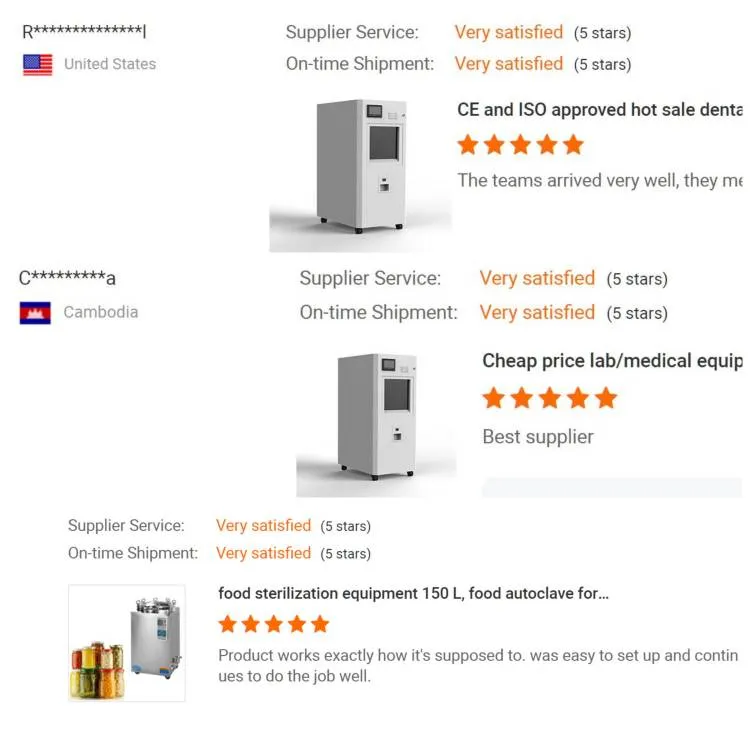

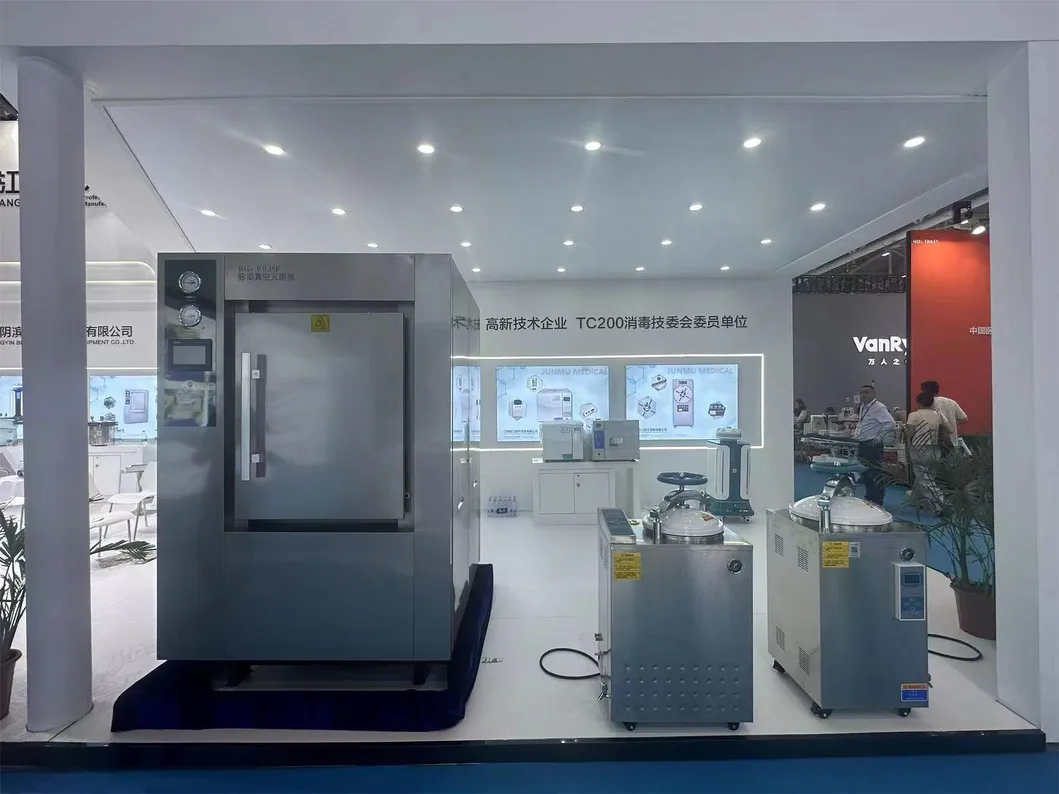

Customer Feedback & Exhibitions

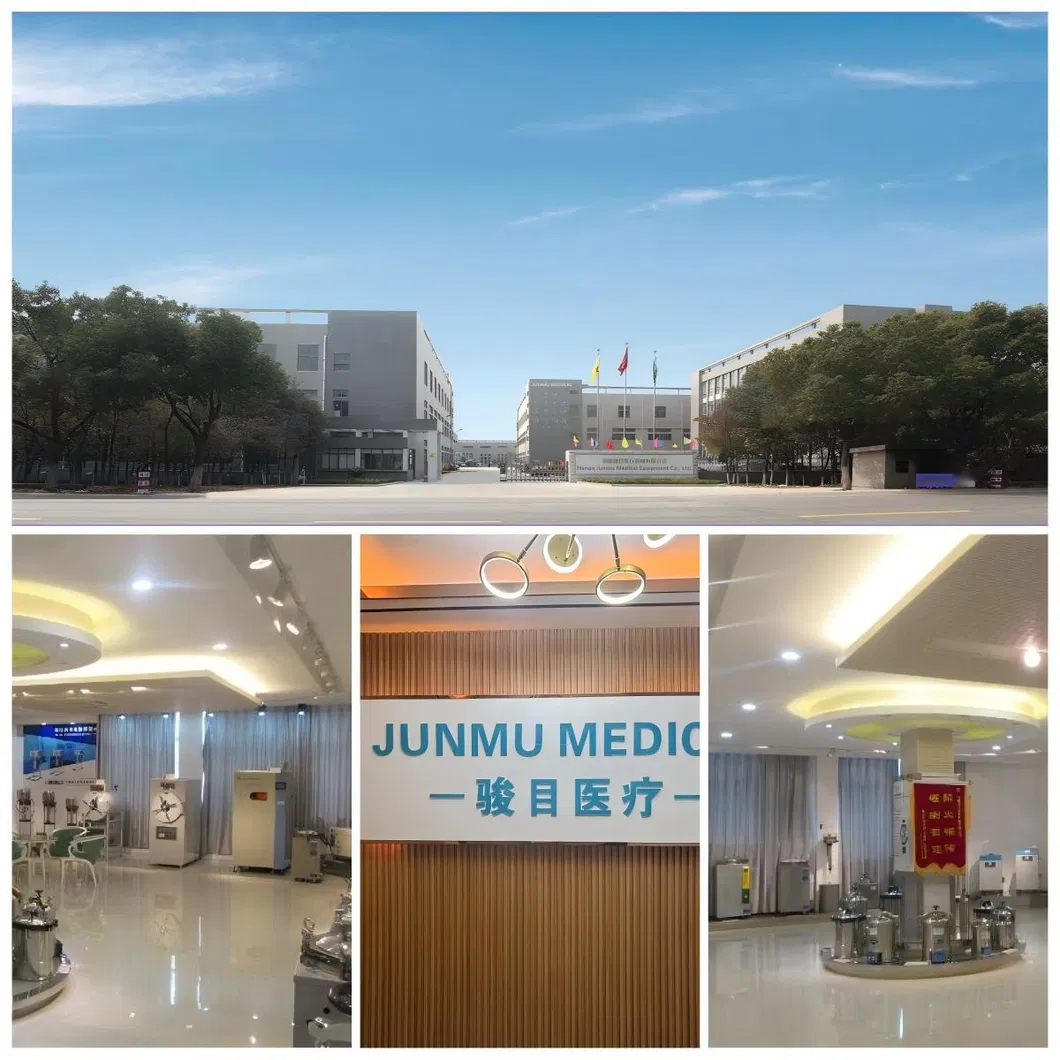

About the Manufacturer
The company is a professional supplier and service provider of disinfection and sterilization equipment. The main product line includes vertical autoclaves, horizontal autoclaves, portable autoclaves, plasma sterilizers, and ethylene oxide sterilizers. These products are widely used in supply rooms, operating rooms, endoscopy centers, dentistry, and laboratories. We are committed to providing mass production, processing, and export of high-quality sterilization equipment with excellent after-sales service.
Frequently Asked Questions
Q1: What materials can be sterilized with this equipment?
A: It is ideal for high-temperature sensitive instruments. However, it is not suitable for sterilizing powders, oils, or cotton fabrics.
Q2: How long is the standard sterilization cycle?
A: The standard sterilization time is approximately ≤35 minutes, while rapid cycles can be completed in ≤28 minutes.
Q3: Is the sterilization process toxic to the environment?
A: No, the hydrogen peroxide plasma technology leaves no poisonous residue and has no negative environmental impact.
Q4: Does the equipment require special detoxification devices?
A: No additional detoxification equipment is needed as the process is inherently safe.
Q5: What is the warranty period for the HTYD-60L?
A: The equipment comes with a 1-year international standard warranty, covering repairs and accessory replacements for quality issues.
Q6: How are the sterilization records managed?
A: The system includes a micro-printer and large-capacity storage that can save sterilization data for more than 10 years.
